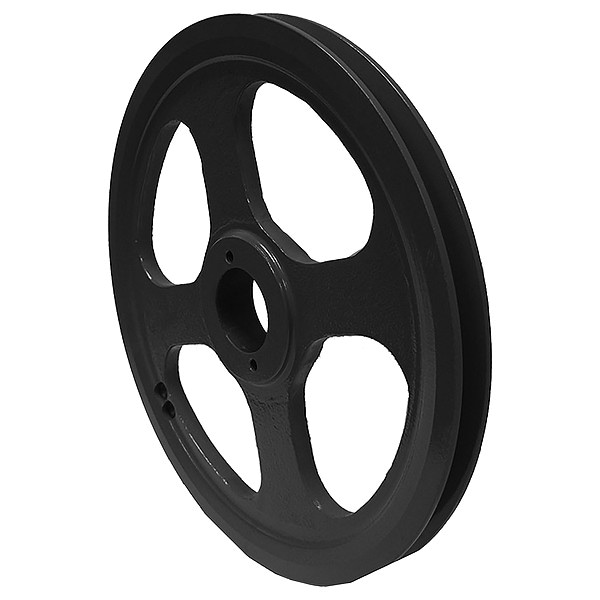

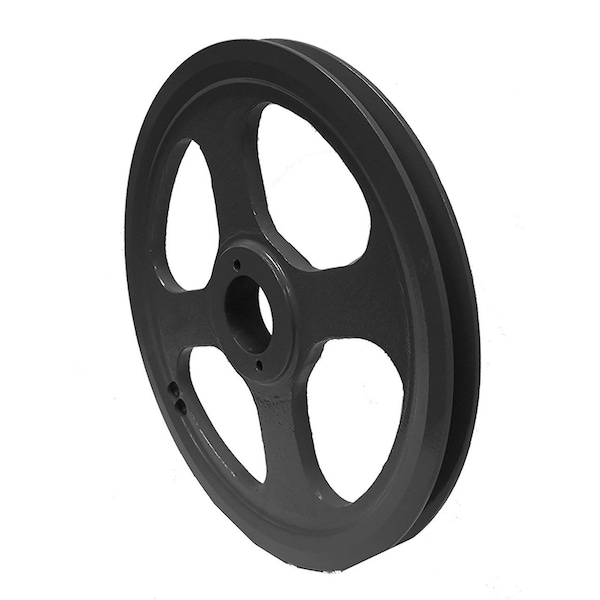

V-Belt Pulley, Cast Iron, 10.75 in OD
Mfr # AK109H
Zoro # G010987206
product price:Â
$
52.39
/ea
Key Features
Number of Grooves
1
Outside Diameter
10.75 in
Length through Bore
1 1/4 in
Bore Type
Bushed
Pitch Diameter
10.16 in (3L), 10.5 in (4L, A)
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AK109H
- Zoro #
- G010987206
- UPC #
- 00195057087613
- Country of Origin
- China
Dimensions
- Outside Diameter
- 10.75 in
- Length through Bore
- 1 1/4 in
- Pitch Diameter
- 10.16 in (3L), 10.5 in (4L, A)
- Overall Width
- 1 5/16 in
- Face Width
- 0.75 in
- For Belt Trade Size
- 3L, 4L, A, AX
- A Pitch Diameter
- 10.5 in
- 3L Pitch Diameter
- 10.16 in
- Maximum Bore Diameter
- 1 1/2 in
- 4L Pitch Diameter
- 10.5 in
- AX Pitch Diameter
- 10.5 in
- Minimum Bore Diameter
- 3/8 in
- For Bushing Size
- H, QT
Details
- Number of Grooves
- 1
- Bore Type
- Bushed
- Weight
- 5.1 lb
- Material Fabrication
- Cast
- Standards
- ISO 9001:2015 Certification, REACH Certification, RoHS Certification
- Item
- V-Belt Pulley
- Material
- Cast Iron
- For V-Belt Type
- Wedge, Cogged
- For Bushing Type
- Quick Detachable, Split Taper
- Pulley Construction
- Spoked
- Pulley Industry Number
- AK109
Description
V-Belt Pulley, 3L Pitch Diameter 10.16 in, 3V Pitch Diameter Not Applicable, 3VX Pitch Diameter Not Applicable, 4L Pitch Diameter 10.5 in, 5L Pitch Diameter Not Applicable, 5V Pitch Diameter Not Applicable, 5VX Pitch Diameter Not Applicable, A Pitch Diameter 10.5 in, B Pitch Diameter Not Applicable, AX Pitch Diameter 10.5 in, BX Pitch Diameter Not Applicable, C Pitch Diameter Not Applicable, CX Pitch Diameter Not Applicable, For Bushing Type Quick Detachable, Split Taper
