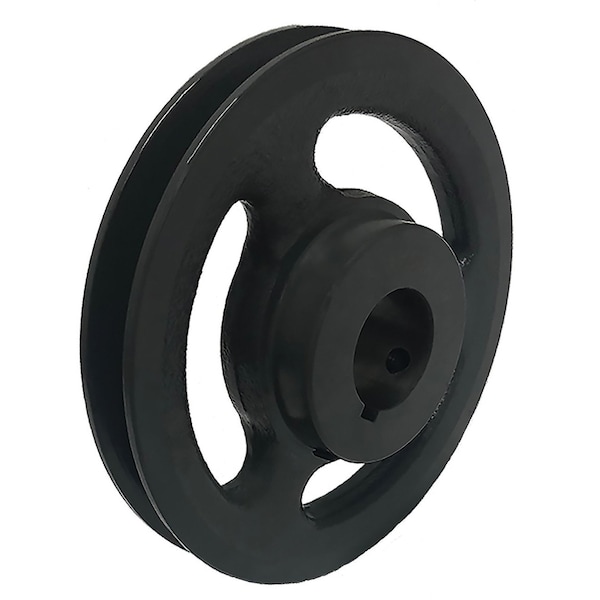

V-Belt Pulley, Cast Iron, Fixed
Mfr # AK71X1-1/8
Zoro # G010987282
product price:Â
$
32.29
/ea
Key Features
Number of Grooves
1
Includes
Set Screw
Overall Width
1 1/2 in
Hub Diameter
2 3/8 in
A Pitch Diameter
6.7 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AK71X1-1/8
- Zoro #
- G010987282
- UPC #
- 00195057087101
- Country of Origin
- China
Dimensions
- Overall Width
- 1 1/2 in
- Hub Diameter
- 2 3/8 in
- A Pitch Diameter
- 6.7 in
- Bore Diameter
- 1 1/8 in
- Face Width
- 0.75 in
- 3L Pitch Diameter
- 6.36 in
- Pitch Diameter
- 6.36 in (3L), 6.7 in (4L, A)
- Outside Diameter
- 6.95 in
- For Belt Trade Size
- 3L, 4L, A, AX
- AX Pitch Diameter
- 6.7 in
- 4L Pitch Diameter
- 6.7 in
- Maximum Bore Diameter
- 1 11/16 in
- Length through Bore
- 1 15/32 in
- Keyway Width
- 1/4 in
- Keyway Depth
- 1/8 in
Description
V-Belt Pulley, 3L Pitch Diameter 6.36 in, 3V Pitch Diameter Not Applicable, 3VX Pitch Diameter Not Applicable, 4L Pitch Diameter 6.7 in, 5L Pitch Diameter Not Applicable, 5V Pitch Diameter Not Applicable, 5VX Pitch Diameter Not Applicable, A Pitch Diameter 6.7 in, AX Pitch Diameter 6.7 in, B Pitch Diameter Not Applicable, BX Pitch Diameter Not Applicable, C Pitch Diameter Not Applicable, CX Pitch Diameter Not Applicable, Bore Diameter 1 1/8 in, Bore Type Fixed
