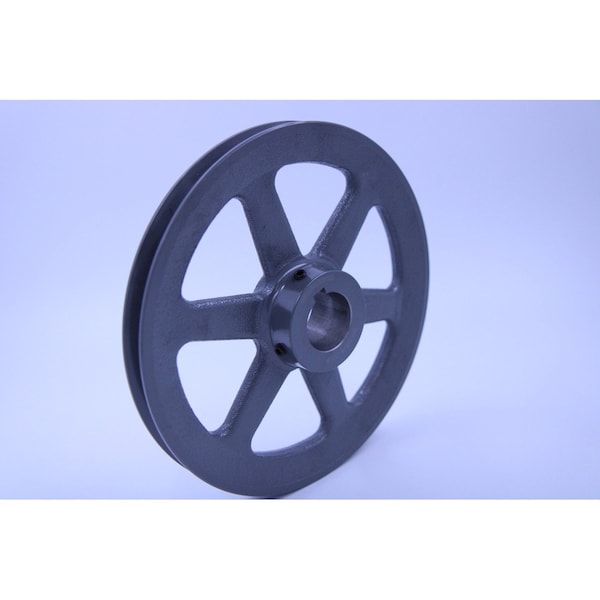

V-Belt Pulley, Cast Iron, Fixed
- Mfr # BK160X1-1/4
- Zoro # G110987038
product price:Â
$
117.99
/ea
Free Shipping & Returns
Key Features
Number of Grooves
1
Weight
14.4 lb
Material
Cast Iron
Outside Diameter
15.75 in
Standards
ISO 9001:2015 Certification, REACH Certification, RoHS Certification
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BK160X1-1/4
- Zoro #
- G110987038
- UPC #
- 00195057091917
- Country of Origin
- China
- Number of Grooves
- 1
- Weight
- 14.4 lb
- Material
- Cast Iron
- Standards
- ISO 9001:2015 Certification, REACH Certification, RoHS Certification
- Item
- V-Belt Pulley
- Number of Set Screws
- 1
- Includes
- Set Screw
- Material Fabrication
- Cast
- Bore Type
- Fixed
- For V-Belt Type
- Cogged
- Pulley Construction
- Spoked
- Pulley Industry Number
- BK160
- Hub Type
- Single-Sided
- Hub Projection
- 0.656 in
- Shell Material
- Cast Iron
- Traction Material
- Cast Iron
Dimensions
- Outside Diameter
- 15.75 in
- Hub Diameter
- 2 3/8 in
- Pitch Diameter
- 15 in (4L, A), 15.4 in (5L, B)
- B Pitch Diameter
- 15.4 in
- For Belt Trade Size
- 4L, 5L, A, AX, B, BX
- Bore Diameter
- 1 1/4 in
- Face Width
- 0.88 in
- A Pitch Diameter
- 15 in
- Overall Width
- 1 9/16 in
- 4L Pitch Diameter
- 15 in
- AX Pitch Diameter
- 15 in
- 5L Pitch Diameter
- 15.4 in
- Maximum Bore Diameter
- 1 11/16 in
- BX Pitch Diameter
- 15.4 in
- Length through Bore
- 1 15/32 in
- Keyway Depth
- 1/8 in
- Keyway Width
- 1/4 in
Description
V-Belt Pulley, 3L Pitch Diameter Not Applicable, 3V Pitch Diameter Not Applicable, 3VX Pitch Diameter Not Applicable, 4L Pitch Diameter 15 in, 5L Pitch Diameter 15.4 in, 5V Pitch Diameter Not Applicable, 5VX Pitch Diameter Not Applicable, A Pitch Diameter 15 in, AX Pitch Diameter 15 in, B Pitch Diameter 15.4 in, BX Pitch Diameter 15.4 in, C Pitch Diameter Not Applicable, CX Pitch Diameter Not Applicable, Bore Diameter 1 1/4 in, Bore Type Fixed
