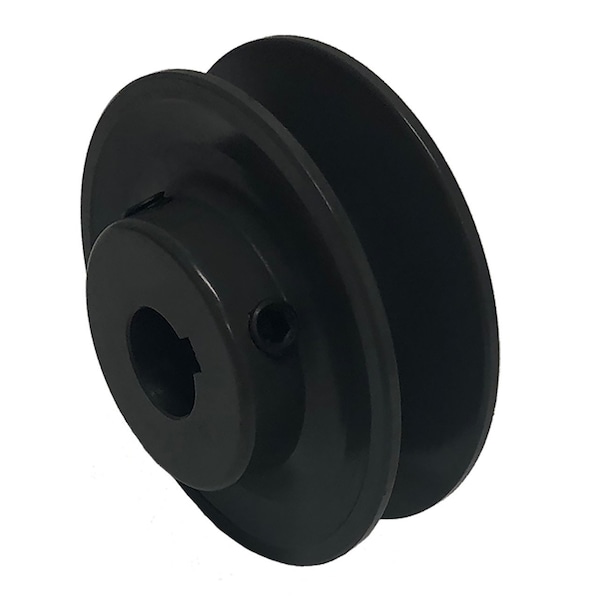

V-Belt Pulley, Cast Iron, Fixed
- Mfr # BK77X1
- Zoro # G010987404
product price:Â
$
38.19
/ea
Key Features
Number of Grooves
1
Face Width
0.88 in
Bore Diameter
1 in
Material Fabrication
Cast
For Belt Trade Size
4L, 5L, A, AX, B, BX
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- BK77X1
- Zoro #
- G010987404
- UPC #
- 00195057091108
- Country of Origin
- China
- Number of Grooves
- 1
- Material Fabrication
- Cast
- Standards
- ISO 9001:2015 Certification, REACH Certification, RoHS Certification
- Item
- V-Belt Pulley
- Material
- Cast Iron
- Number of Set Screws
- 1
- Bore Type
- Fixed
- Weight
- 5.1 lb
- Includes
- Set Screw
- For V-Belt Type
- Cogged
- Pulley Construction
- Spoked
- Pulley Industry Number
- BK77
- Hub Type
- Single-Sided
- Hub Projection
- 0.656 in
- Shell Material
- Cast Iron
Dimensions
- Face Width
- 0.88 in
- Bore Diameter
- 1 in
- For Belt Trade Size
- 4L, 5L, A, AX, B, BX
- Overall Width
- 1 9/16 in
- Hub Diameter
- 2 3/8 in
- Pitch Diameter
- 6.7 in (4L, A), 7.1 in (5L, B)
- Outside Diameter
- 7.45 in
- B Pitch Diameter
- 7.1 in
- A Pitch Diameter
- 6.7 in
- 5L Pitch Diameter
- 7.1 in
- BX Pitch Diameter
- 7.1 in
- AX Pitch Diameter
- 6.7 in
- 4L Pitch Diameter
- 6.7 in
- Maximum Bore Diameter
- 1 11/16 in
- Length through Bore
- 1 15/32 in
- Keyway Depth
- 1/8 in
- Keyway Width
- 1/4 in
Description
V-Belt Pulley, 3L Pitch Diameter Not Applicable, 3V Pitch Diameter Not Applicable, 3VX Pitch Diameter Not Applicable, 4L Pitch Diameter 6.7 in, 5L Pitch Diameter 7.1 in, 5V Pitch Diameter Not Applicable, 5VX Pitch Diameter Not Applicable, A Pitch Diameter 6.7 in, AX Pitch Diameter 6.7 in, B Pitch Diameter 7.1 in, BX Pitch Diameter 7.1 in, C Pitch Diameter Not Applicable, CX Pitch Diameter Not Applicable, Bore Diameter 1 in, Bore Type Fixed
