  9. Vacuum Gauge, Liquid Filled, 1-1/2 In
Zoro Select Vacuum Gauge, Liquid Filled, 1-1/2 In 4CFD8 - main

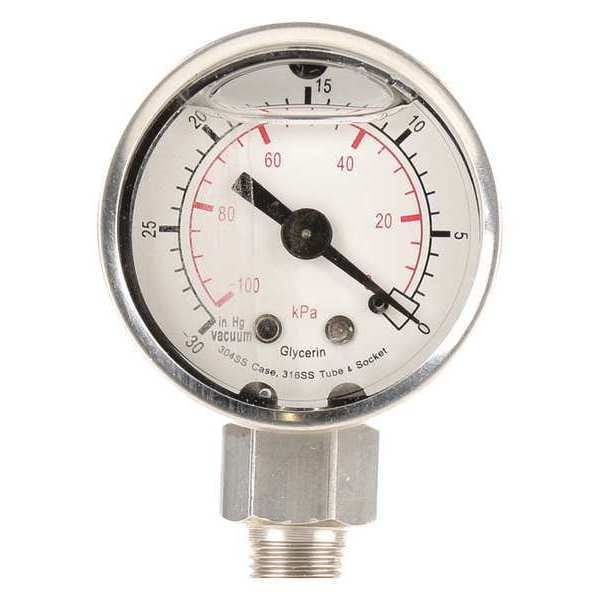

Vacuum Gauge, Liquid Filled, 1-1/2 In

  • Mfr # 4CFD8

  • Zoro # G0040512

product price: $13.15
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Gauge Nominal Dial Size
1 1/2 in
Basic Gauge Case Material
Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4CFD8
Zoro #
G0040512
UPC #
190735501627
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
1 1/2 in
Gauge Connection Size
1/8 in
Connection Size
1/8 in NPT
Process Connection Size
1/8 in
Nominal Dial Size
1 1/2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Corrosion-Resistant Case
Liquid Filled
Yes
Basic Gauge Case Material
Stainless Steel
Basic Gauge Wetted Parts
Stainless Steel
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Units
in Hg
Basic Gauge Socket Material
Stainless Steel
Gauge Accuracy
+/-3-2-3%
Gauge Primary Range Values
-30 to 0
Calibration Certificate Included
No
Gauge Panel Mountable
No
Smallest Graduation
1 in Hg
Gauge Secondary Range Units
kPa
Range
100 kPa Vac to 0, 30 in Hg Vac to 0
Basic Gauge Lens Material
Plastic
Gauge Lens Material
Acrylic
Gauge Case Color
Stainless Steel
Gauge Socket Material
316 Stainless Steel
Gauge Sensor Material
316 Stainless Steel
Connection Location
Lower
Gauge Filled With
Glycerin
Item
Commercial Vacuum Gauge
Gauge Primary Range Smallest Graduation
1
Case Color
Silver
Basic Gauge Sensor Material
Stainless Steel
Operating Temp. Range
-40 Degrees to 140 Degrees F
Gauge Case Material
304 Stainless Steel
Gauge Secondary Range Values
-100 to 0
Includes Calibration Certificate
No
Secondary Pressure Range
-100 to 0
Removable Bezel
No
Primary Scale Units
in Hg
Secondary Scale Units
kPa
Hazardous Location Rating
Not Rated
Pressure Range Type
Vacuum
Gauge Case Liquid
Glycerin
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Process Connection Gender
Male
Application
General Purpose
Bezel Material
Crimped Stainless Steel
Primary Scale Minor Graduations
1
Dial Color
White
Includes Vent Plug
No
Ambient Operating Temperature Range
-40 Degrees to 140 Degrees F
Blowout Safety Back
No
IP/NEMA Rating
Not Rated
Vibration Resistance
Liquid-Filled
Non-Sparking
No
Process Connection Type
NPT
Liquid-Filled Case
Yes
Socket Material
316 Stainless Steel
Dry Dampening Feature
None
Freeze Resistant Movement
No
Lens Material
Acrylic
Panel-Mountable
No
Accuracy Scale
Mid-Scale
Field Fillable
No
Sensor Material
316 Stainless Steel
Case Material
304 Stainless Steel
Primary Pressure Range
30 to 0
Process Connection Location
Bottom
Includes Mounting Hardware
No
Cleaned for Oxygen Service
No
Scale Type
Dual
Accuracy
+/-3-2-3%

Description

Commercial Vacuum Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material 304 Stainless Steel, Nominal Dial Size 1 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material 316 Stainless Steel, Socket Material 316 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/8 in, Panel-Mountable No, Pressure Gauge Type General Purpose Dial Pressure Gauge
