  9. Vacuum Gauge, Test, 2-1/2 In
Zoro Select Vacuum Gauge, Test, 2-1/2 In 4FMD9 - main

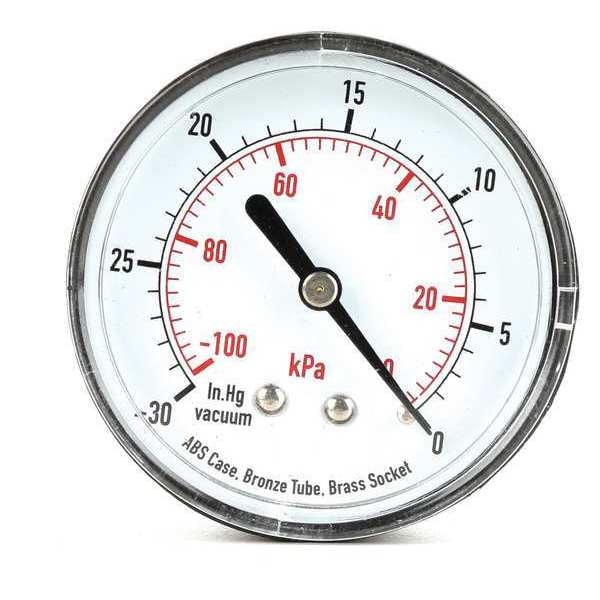

Vacuum Gauge, Test, 2-1/2 In

  • Mfr # 4FMD9

  • Zoro # G0039042

product price: $6.49
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
General-Purpose Case
Liquid Filled
No
Gauge Nominal Dial Size
2 1/2 in
Basic Gauge Case Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4FMD9
Zoro #
G0039042
UPC #
190735507896
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
2 1/2 in
Gauge Connection Size
1/4 in
Connection Size
1/4 in NPT
Process Connection Size
1/4 in
Nominal Dial Size
2 1/2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
General-Purpose Case
Liquid Filled
No
Basic Gauge Case Material
Plastic
Basic Gauge Wetted Parts
Brass / Bronze
Gauge Connection Type
MNPT
Gauge Connection Location
Center Back
Gauge Primary Range Units
in Hg
Connection Location
Back
Gauge Case Material
ABS Plastic
Gauge Accuracy
+/-3-2-3%
Gauge Primary Range Smallest Graduation
1
Gauge Panel Mountable
No
Smallest Graduation
1 in Hg
Basic Gauge Socket Material
Brass
Gauge Secondary Range Values
-100 to 0
Gauge Case Color
Black
Operating Temp. Range
-40 Degrees to 150 Degrees F
Gauge Secondary Range Units
kPa
Calibration Certificate Included
No
Gauge Socket Material
Brass
Item
Commercial Vacuum Gauge
Case Color
Black
Basic Gauge Lens Material
Plastic
Gauge Sensor Material
Bronze
Gauge Primary Range Values
-30 to 0
Range
100 kPa Vac to 0, 30 in Hg Vac to 0
Basic Gauge Sensor Material
Bronze
Gauge Lens Material
Acrylic
Socket Material
Brass
Vibration Resistance
None
Field Fillable
No
Includes Mounting Hardware
No
Process Connection Location
Center Back
Pressure Range Type
Vacuum
Process Connection Type
NPT
Hazardous Location Rating
Not Rated
Application
Test and Measurement
Liquid-Filled Case
No
Cleaned for Oxygen Service
No
IP/NEMA Rating
Not Rated
Includes Vent Plug
No
Freeze Resistant Movement
No
Blowout Safety Back
No
Bezel Material
Crimped Stainless Steel
Accuracy Scale
Mid-Scale
Dial Color
White
Primary Scale Minor Graduations
1, 2
Sensor Material
Bronze
Scale Type
Dual
Gauge Case Liquid
None
Process Connection Gender
Male
Primary Pressure Range
30 to 0
Primary Scale Units
in Hg
Panel-Mountable
No
Removable Bezel
No
Includes Calibration Certificate
No
Lens Material
Acrylic
Dry Dampening Feature
None
Secondary Scale Units
kPa
Non-Sparking
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Accuracy
+/-3-2-3%
Pressure Gauge Type
General Purpose Dial Pressure Gauge
Secondary Pressure Range
-100 to 0
Case Material
ABS Plastic

Description

Commercial Vacuum Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Nominal Dial Size 2 1/2 in, Lens Material Acrylic, IP/NEMA Rating Not Rated, Hazardous Location Rating Not Rated, Sensor Material Bronze, Socket Material Brass, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/4 in, Panel-Mountable No, Pressure Gauge Type General Purpose Dial Pressure Gauge

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
