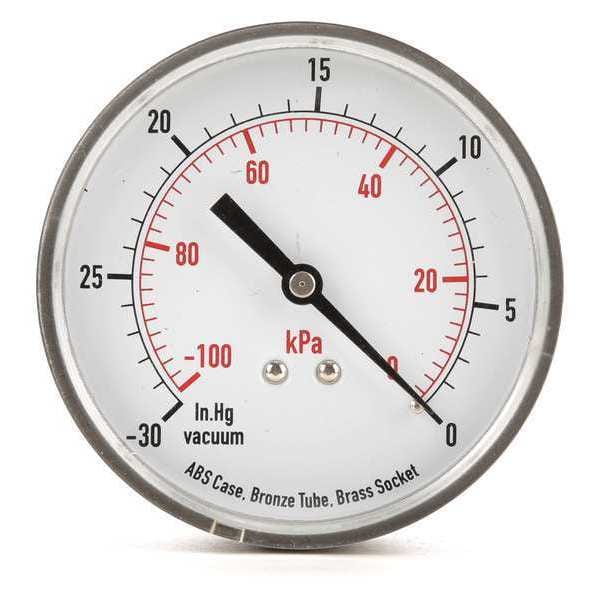

Zoro Select Vacuum Gauge, Test, 3-1/2 In 4FMF8 - main

Vacuum Gauge, Test, 3-1/2 In

  • Mfr # 4FMF8

  • Zoro # G0039724

product price: $9.95
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
General-Purpose Case
Liquid Filled
No
Gauge Nominal Dial Size
3 1/2 in
Basic Gauge Case Material
Plastic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4FMF8
Zoro #
G0039724
UPC #
190735508060
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
3 1/2 in
Gauge Connection Size
1/4 in
Connection Size
1/4 in NPT
Process Connection Size
1/4 in
Nominal Dial Size
3 1/2 in
Nominal Dial Diameter
3 1/2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
General-Purpose Case
Liquid Filled
No
Basic Gauge Case Material
Plastic
Basic Gauge Wetted Parts
Brass / Bronze
Gauge Connection Type
MNPT
Gauge Connection Location
Center Back
Gauge Primary Range Units
in Hg
Basic Gauge Socket Material
Brass
Connection Location
Back
Gauge Case Color
Black
Item
Commercial Vacuum Gauge
Gauge Primary Range Values
-30 to 0
Basic Gauge Lens Material
Plastic
Gauge Socket Material
Brass
Range
100 kPa Vac to 0, 30 in Hg Vac to 0
Gauge Primary Range Smallest Graduation
1
Gauge Accuracy
+/-3-2-3%
Case Color
Black
Calibration Certificate Included
No
Gauge Secondary Range Values
-100 to 0
Gauge Case Material
ABS Plastic
Smallest Graduation
1 in Hg
Gauge Lens Material
Acrylic
Gauge Sensor Material
Bronze
Basic Gauge Sensor Material
Bronze
Gauge Secondary Range Units
kPa
Operating Temp. Range
-40 Degrees to 150 Degrees F
Gauge Panel Mountable
No
Cleaned for Oxygen Service
No
Process Connection Location
Center Back
Hazardous Location Rating
Not Rated
Bezel Material
Crimped Stainless Steel
Socket Material
Brass
Blowout Safety Back
No
Process Connection Type
NPT
Dry Dampening Feature
None
Field Fillable
No
Primary Scale Units
in Hg
Process Connection Gender
Male
Non-Sparking
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Lens Material
Acrylic
Removable Bezel
No
Primary Scale Minor Graduations
1
Primary Pressure Range
30 to 0
Includes Vent Plug
No
Includes Calibration Certificate
No
Gauge Case Liquid
None
Secondary Pressure Range
-100 to 0
Includes Mounting Hardware
No
Pressure Range Type
Vacuum
Accuracy
+/-3-2-3%
Panel-Mountable
No
IP/NEMA Rating
Not Rated
Vibration Resistance
None
Dial Color
White
Liquid-Filled Case
No
Freeze Resistant Movement
No
Sensor Material
Bronze
Secondary Scale Units
kPa
Application
Test and Measurement
Scale Type
Dual
Pressure Gauge Type
Commercial Pressure Gauge
Accuracy Scale
Mid-Scale
Case Material
ABS Plastic
Secondary Scale Vacuum Measurement - Maximum
0 kPa
Case Liquid
None
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Secondary Scale Vacuum Measurement - Minimum
-100 kPa
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Commercial Vacuum Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS Plastic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Commercial Pressure Gauge
