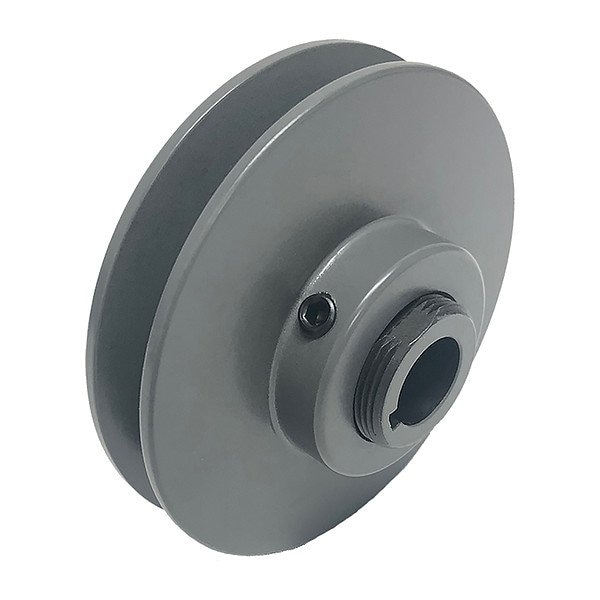

Zoro Select Variable Pitch V-Belt Pulley 1VP40x1 - main

Variable Pitch V-Belt Pulley

  • Mfr # 1VP40x1

  • Zoro # G614869045

product price:  $22.39
/ea

Key Features

Number of Grooves
1
Keyway Depth
1/8 in
BX Pitch Diameter (Minimum)
2.7 in
3L Pitch Diameter (Maximum)
3.1 in
A Pitch Diameter (Minimum)
2.4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1VP40x1
Zoro #
G614869045
UPC #
00195057185593
Country of Origin
China

Dimensions

Keyway Depth
1/8 in
BX Pitch Diameter (Minimum)
2.7 in
3L Pitch Diameter (Maximum)
3.1 in
A Pitch Diameter (Minimum)
2.4 in
Overall Width
1 7/8 in
For Belt Trade Size
3L, 4L, 5L, A, AX, B, BX
B Pitch Diameter (Maximum)
3.7 in
Maximum Face Width
1.063 in
4L Pitch Diameter (Maximum)
3.4 in
4L Pitch Diameter (Minimum)
2.4 in
5L Pitch Diameter (Maximum)
3.7 in
Length through Bore
1 7/8 in
3L Pitch Diameter (Minimum)
2.3 in
Minimum Pitch Diameter
2.3 in (3L), 2.4 in (4L, A), 2.7 in (5L, B)
A Pitch Diameter (Maximum)
3.4 in
B Pitch Diameter (Minimum)
2.7 in
Maximum Pitch Diameter
3.1 in (3L), 3.4 in (4L, A), 3.7 in (5L, B)
BX Pitch Diameter (Maximum)
3.7 in
AX Pitch Diameter (Maximum)
3.4 in
Keyway Width
1/4 in
Bore Diameter
1 in
5L Pitch Diameter (Minimum)
2.7 in
AX Pitch Diameter (Minimum)
2.4 in
Minimum Face Width
0.688 in
Outside Diameter
3.75 in

Details

Number of Grooves
1
Pulley Industry Number
1VP40
Pulley Construction
Plain
Material Fabrication
Cast
Weight
1.9 lb
Item
Variable Pitch V-Belt Pulley
For V-Belt Type
Classical, Cogged
Set Screw Location
One 90 Degrees from Keyway, One over the Keyway
Material
Cast Iron
Number of Turns
4 (3L); 5 (4L, A); 6 (5L, B)
Standards
REACH Certification, RoHS Certification

Description

Variable Pitch V-Belt Pulley, Bore Diameter 1 in, Standards REACH Certification, RoHS Certification, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Wedge, Cogged, Material Cast Iron, Maximum Pitch Diameter 3.1 in (3L), 3.4 in (4L, A), 3.7 in (5L, B), Number of Grooves 1, Outside Diameter 3.75 in, Set Screw Location 90 Degrees from Keyway, On Keyway, 3L Pitch Diameter (Maximum) 3.1 in, 3L Pitch Diameter (Minimum) 2.3 in, 3V Pitch Diameter (Maximum) Not Applicable
