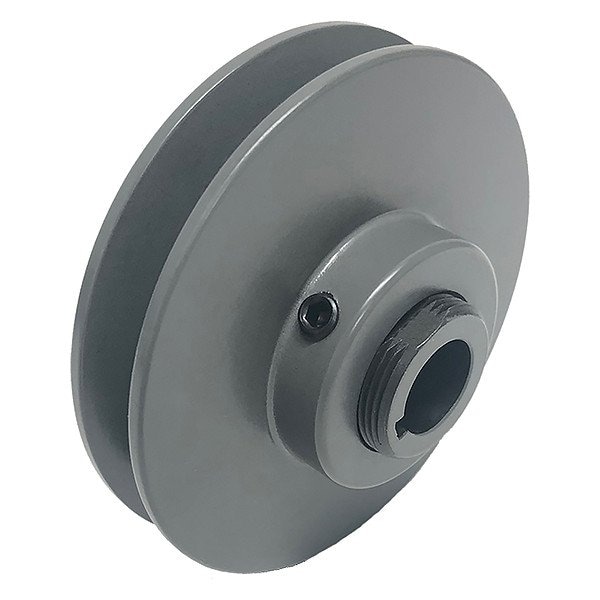

Variable Pitch V-Belt Pulley

  • Mfr # 1VP71X1-5/8

  • Zoro # G610987309

product price:  $74.39
/ea

Key Features

Number of Grooves
1
Material
Cast Iron
Standards
REACH Certification, RoHS Compliant
Bore Diameter
1 5/8 in
Material Fabrication
Cast
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1VP71X1-5/8
Zoro #
G610987309
UPC #
00195057186095
Country of Origin
China

Dimensions

Bore Diameter
1 5/8 in
Outside Diameter
7.1 in
Overall Width
1 11/16 in
For Belt Trade Size
4L, 5L, 5V, 5VX, A, AX, B, BX
5L Pitch Diameter (Maximum)
6.6 in
AX Pitch Diameter (Minimum)
5.3 in
5L Pitch Diameter (Minimum)
5.4 in
5V Pitch Diameter (Maximum)
7 in
B Pitch Diameter (Minimum)
5.4 in
5VX Pitch Diameter (Minimum)
5.8 in
4L Pitch Diameter (Maximum)
6.3 in
Maximum Pitch Diameter
6.3 in (4L, A), 6.6 in (5L, B), 7 in (5V)
BX Pitch Diameter (Maximum)
6.6 in
5V Pitch Diameter (Minimum)
5.8 in
B Pitch Diameter (Maximum)
6.6 in
BX Pitch Diameter (Minimum)
5.4 in
A Pitch Diameter (Maximum)
6.3 in
AX Pitch Diameter (Maximum)
6.3 in
5VX Pitch Diameter (Maximum)
7 in
A Pitch Diameter (Minimum)
5.3 in
4L Pitch Diameter (Minimum)
5.3 in
Minimum Pitch Diameter
5.3 in (4L, A), 5.4 in (5L, B), 5.8 in (5V)
Minimum Face Width
0.875 in
Length through Bore
1 21/32 in
Keyway Depth
3/16 in
Maximum Face Width
1.25 in
Keyway Width
3/8 in

Details

Number of Grooves
1
Material
Cast Iron
Standards
REACH Certification, RoHS Compliant
Item
Variable Pitch V-Belt Pulley
Material Fabrication
Cast
Weight
8.2 lb
Pulley Construction
Plain
Number of Turns
5 (4L, A); 6 (5L, B); 6 (5V)
For V-Belt Type
Wedge, Cogged
Pulley Industry Number
1VP71

Description

Variable Pitch V-Belt Pulley, Bore Diameter 1 5/8 in, Standards REACH Certification, RoHS Compliant, For Belt Trade Size 4L, 5L, 5V, 5VX, A, AX, B, BX, For V-Belt Type Wedge, Cogged, Material Cast Iron, Maximum Pitch Diameter 6.3 in (4L, A), 6.6 in (5L, B), 7 in (5V), Number of Grooves 1, Outside Diameter 7.1 in, Set Screw Location Not Applicable, 3L Pitch Diameter (Maximum) Not Applicable, 3L Pitch Diameter (Minimum) Not Applicable, 3V Pitch Diameter (Maximum) Not Applicable
