No Product Image Available

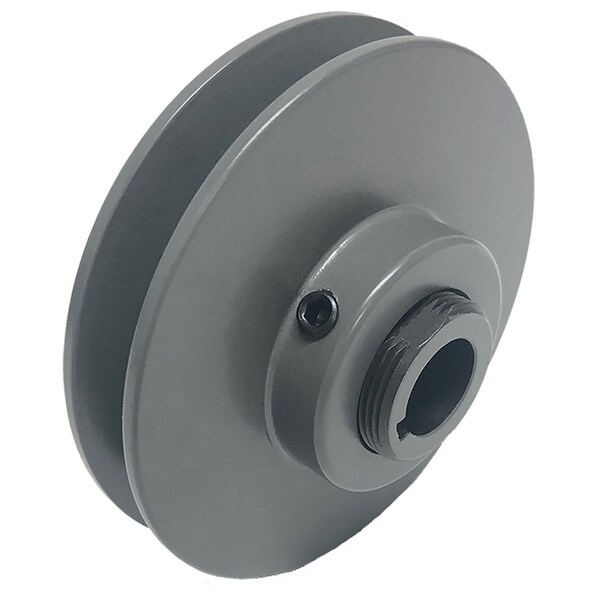

Variable Pitch V-Belt Pulley

  • Mfr # 1VP75X3/4

  • Zoro # G010987213

product price: $86.19
/ea
Free Shipping & Returns

Key Features

Number of Grooves
1
Material Fabrication
Cast
Overall Width
1 11/16 in
For Belt Trade Size
4L, 5L, 5V, 5VX, A, AX, B, BX
Outside Diameter
7.5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1VP75X3/4
Zoro #
G010987213
UPC #
00195057186156
Country of Origin
China

Dimensions

Overall Width
1 11/16 in
For Belt Trade Size
4L, 5L, 5V, 5VX, A, AX, B, BX
Outside Diameter
7.5 in
Bore Diameter
3/4 in
A Pitch Diameter (Maximum)
6.7 in
4L Pitch Diameter (Minimum)
5.7 in
BX Pitch Diameter (Minimum)
5.8 in
B Pitch Diameter (Minimum)
5.8 in
5VX Pitch Diameter (Maximum)
7.4 in
5V Pitch Diameter (Maximum)
7.4 in
A Pitch Diameter (Minimum)
5.7 in
BX Pitch Diameter (Maximum)
7 in
5VX Pitch Diameter (Minimum)
6.2 in
B Pitch Diameter (Maximum)
7 in
5L Pitch Diameter (Minimum)
5.8 in
Maximum Pitch Diameter
6.7 in (4L, A), 7 in (5L, B), 7.4 in (5V)
AX Pitch Diameter (Maximum)
6.7 in
5V Pitch Diameter (Minimum)
6.2 in
5L Pitch Diameter (Maximum)
7 in
4L Pitch Diameter (Maximum)
6.7 in
AX Pitch Diameter (Minimum)
5.7 in
Keyway Depth
3/32 in
Keyway Width
3/16 in
Minimum Pitch Diameter
5.7 in (4L, A), 5.8 in (5L, B), 6.2 in (5V)
Maximum Face Width
1.25 in
Length through Bore
1 21/32 in
Minimum Face Width
0.875 in

Description

Variable Pitch V-Belt Pulley, Bore Diameter 3/4 in, Standards REACH Certification, RoHS Compliant, For Belt Trade Size 4L, 5L, 5V, 5VX, A, AX, B, BX, For V-Belt Type Wedge, Cogged, Material Cast Iron, Maximum Pitch Diameter 6.7 in (4L, A), 7 in (5L, B), 7.4 in (5V), Number of Grooves 1, Outside Diameter 7.5 in, Set Screw Location Not Applicable, 3L Pitch Diameter (Maximum) Not Applicable, 3L Pitch Diameter (Minimum) Not Applicable, 3V Pitch Diameter (Maximum) Not Applicable
