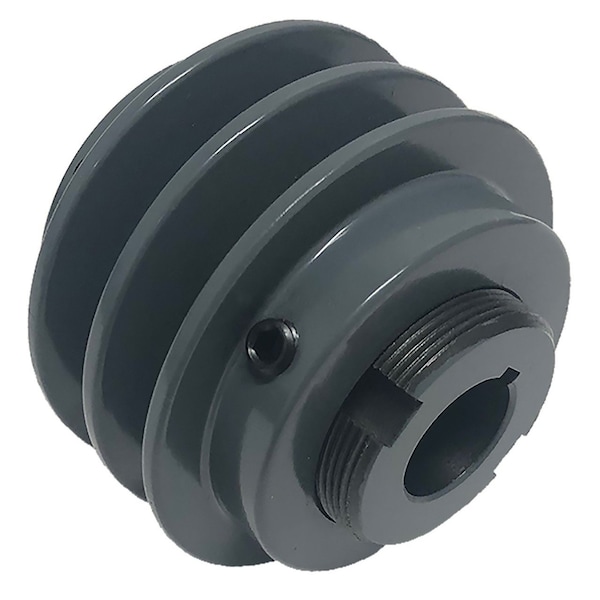

Variable Pitch V-Belt Pulley
Mfr # 2VP36X1-1/8
Zoro # G110987175
product price:Â $43.69
/eaKey Features
Number of Grooves
2
Bore Diameter
1 1/8 in
Material
Cast Iron
For Belt Trade Size
3L, 4L, 5L, A, AX, B, BX
Standards
REACH Certification, RoHS Compliant
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
2VP36X1-1/8
Zoro #
G110987175
UPC #
00195057186194
Country of Origin
China
Dimensions
Bore Diameter
1 1/8 in
For Belt Trade Size
3L, 4L, 5L, A, AX, B, BX
A Pitch Diameter (Maximum)
3 in
Outside Diameter
3.35 in
BX Pitch Diameter (Maximum)
3.3 in
BX Pitch Diameter (Minimum)
2.5 in
B Pitch Diameter (Maximum)
3.3 in
3L Pitch Diameter (Maximum)
2.7 in
A Pitch Diameter (Minimum)
2 in
5L Pitch Diameter (Maximum)
3.3 in
B Pitch Diameter (Minimum)
2.5 in
4L Pitch Diameter (Maximum)
3 in
Maximum Pitch Diameter
2.7 in (3L), 3 in (4L, A), 3.3 in (5L, B)
5L Pitch Diameter (Minimum)
2.5 in
AX Pitch Diameter (Minimum)
2 in
4L Pitch Diameter (Minimum)
2 in
AX Pitch Diameter (Maximum)
3 in
3L Pitch Diameter (Minimum)
1.9 in
Minimum Face Width
1.375 in
Length through Bore
3 in
Keyway Depth
1/8 in
Keyway Width
1/4 in
Overall Width
3 in
Minimum Pitch Diameter
1.9 in (3L), 2.0 in (4L, A), 2.5 in (5L, B)
Maximum Face Width
2 in
Description
Variable Pitch V-Belt Pulley, Bore Diameter 1 1/8 in, Standards REACH Certification, RoHS Compliant, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Banded, Wedge, Cogged, Material Cast Iron, Maximum Pitch Diameter 2.7 in (3L), 3 in (4L, A), 3.3 in (5L, B), Number of Grooves 2, Outside Diameter 3.35 in, Set Screw Location Not Applicable, 3L Pitch Diameter (Maximum) 2.7 in, 3L Pitch Diameter (Minimum) 1.9 in, 3V Pitch Diameter (Maximum) Not Applicable
