No Product Image Available

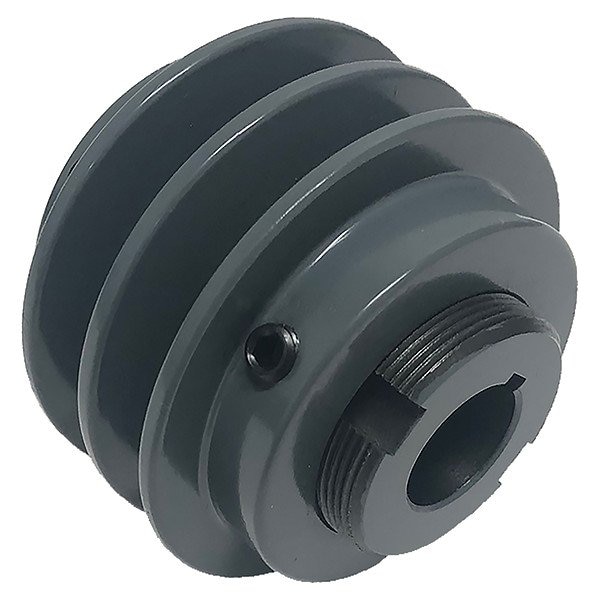

Variable Pitch V-Belt Pulley

  • Mfr # 2VP36X3/4

  • Zoro # G010987183

product price: $41.69
/ea

Key Features

Number of Grooves
2
Bore Diameter
3/4 in
For Belt Trade Size
3L, 4L, 5L, A, AX, B, BX
Standards
REACH Certification, RoHS Compliant
Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2VP36X3/4
Zoro #
G010987183
UPC #
-
Country of Origin
China

Dimensions

Bore Diameter
3/4 in
For Belt Trade Size
3L, 4L, 5L, A, AX, B, BX
3L Pitch Diameter (Maximum)
2.7 in
BX Pitch Diameter (Maximum)
3.3 in
Outside Diameter
3.35 in
5L Pitch Diameter (Maximum)
3.3 in
B Pitch Diameter (Minimum)
2.5 in
4L Pitch Diameter (Maximum)
3 in
Maximum Pitch Diameter
2.7 in (3L), 3 in (4L, A), 3.3 in (5L, B)
BX Pitch Diameter (Minimum)
2.5 in
A Pitch Diameter (Maximum)
3 in
4L Pitch Diameter (Minimum)
2 in
AX Pitch Diameter (Maximum)
3 in
A Pitch Diameter (Minimum)
2 in
B Pitch Diameter (Maximum)
3.3 in
3L Pitch Diameter (Minimum)
1.9 in
AX Pitch Diameter (Minimum)
2 in
5L Pitch Diameter (Minimum)
2.5 in
Maximum Face Width
2 in
Overall Width
3 in
Length through Bore
3 in
Minimum Face Width
1.375 in
Keyway Width
3/16 in
Keyway Depth
3/32 in
Minimum Pitch Diameter
1.9 in (3L), 2.0 in (4L, A), 2.5 in (5L, B)

Description

Variable Pitch V-Belt Pulley, Bore Diameter 3/4 in, Standards REACH Certification, RoHS Compliant, For Belt Trade Size 3L, 4L, 5L, A, AX, B, BX, For V-Belt Type Banded, Wedge, Cogged, Material Cast Iron, Maximum Pitch Diameter 2.7 in (3L), 3 in (4L, A), 3.3 in (5L, B), Number of Grooves 2, Outside Diameter 3.35 in, Set Screw Location Not Applicable, 3L Pitch Diameter (Maximum) 2.7 in, 3L Pitch Diameter (Minimum) 1.9 in, 3V Pitch Diameter (Maximum) Not Applicable
