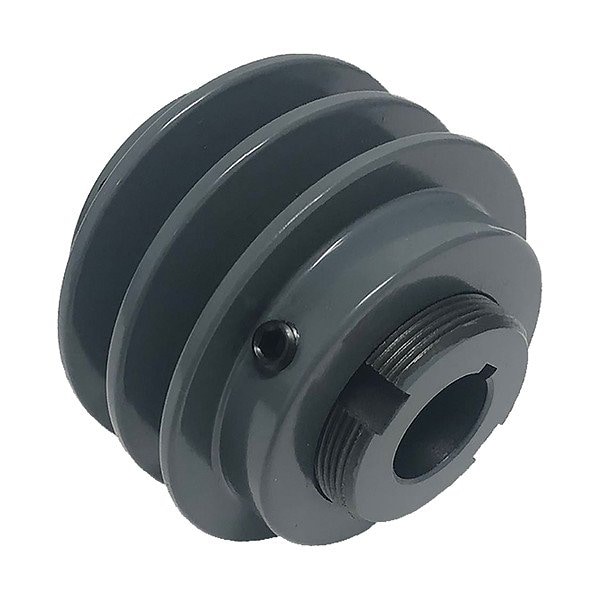

Variable Pitch V-Belt Pulley, Cast Iron
Mfr # 2VP68x1-5/8
Zoro # G614868949
product price: $130.99
/ea
Free Shipping & Returns
Key Features
Number of Grooves
2
Material
Cast Iron
Pulley Industry Number
2VP68
BX Pitch Diameter (Maximum)
6.5 in
Length through Bore
3 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2VP68x1-5/8
Zoro #
G614868949
UPC #
00195057186460
Country of Origin
China
Dimensions
BX Pitch Diameter (Maximum)
6.5 in
Length through Bore
3 in
3L Pitch Diameter (Minimum)
5.1 in
Maximum Face Width
2.125 in
5L Pitch Diameter (Maximum)
6.5 in
Overall Width
3 in
4L Pitch Diameter (Minimum)
5.2 in
5VX Pitch Diameter (Maximum)
6.9 in
A Pitch Diameter (Maximum)
6.2 in
Minimum Pitch Diameter
5.1 in (3L), 5.2 in (4L, A), 5.5 in (5L, B), 5.9 in (5V)
Keyway Width
3/8 in
AX Pitch Diameter (Minimum)
5.2 in
4L Pitch Diameter (Maximum)
6.2 in
AX Pitch Diameter (Maximum)
6.2 in
5L Pitch Diameter (Minimum)
5.5 in
5VX Pitch Diameter (Minimum)
5.9 in
Minimum Face Width
1.375 in
B Pitch Diameter (Minimum)
5.5 in
Keyway Depth
3/16 in
BX Pitch Diameter (Minimum)
5.5 in
A Pitch Diameter (Minimum)
5.2 in
Bore Diameter
1 5/8 in
Maximum Pitch Diameter
5.9 in (3L), 6.2 in (4L, A), 6.5 in (5L, B), 6.9 in (5V)
B Pitch Diameter (Maximum)
6.5 in
Outside Diameter
6.55 in
3L Pitch Diameter (Maximum)
5.9 in
5V Pitch Diameter (Minimum)
5.9 in
5V Pitch Diameter (Maximum)
6.9 in
For Belt Trade Size
3L, 4L, 5L, 5V, 5VX, A, AX, B, BX
Description
Variable Pitch V-Belt Pulley, Bore Diameter 1 5/8 in, Standards REACH Certification, RoHS Certification, For Belt Trade Size 3L, 4L, 5L, 5V, 5VX, A, AX, B, BX, For V-Belt Type Banded, Classical, Cogged, Wedge, Material Cast Iron, Maximum Pitch Diameter 5.9 in (3L), 6.2 in (4L, A), 6.5 in (5L, B), 6.9 in (5V), Number of Grooves 2, Outside Diameter 6.55 in, Set Screw Location One 90 Degrees from Keyway, One over the Keyway, 3L Pitch Diameter (Maximum) 5.9 in, 3L Pitch Diameter (Minimum) 5.1 in
