  5. White PTFE Film Stock 60" L x 6" W x 0.003" Thick

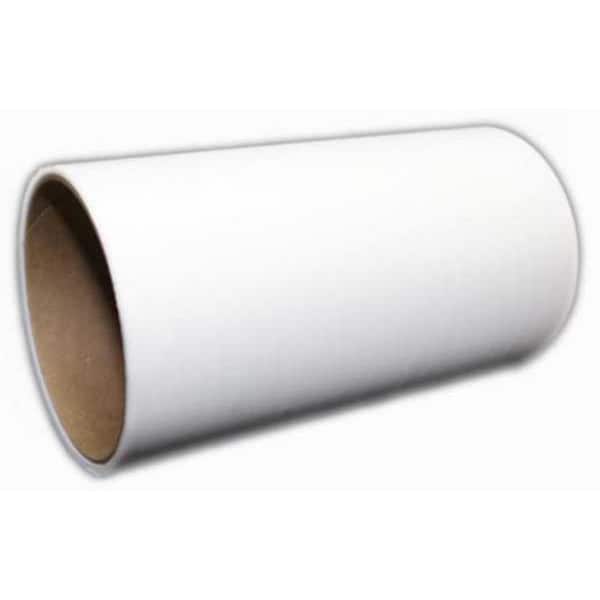

Zoro Select White PTFE Film Stock 60" L x 6" W x 0.003" Thick G15-3F-6X5 - main

White PTFE Film Stock 60" L x 6" W x 0.003" Thick

  • Mfr # G15-3F-6X5

  • Zoro # G2828135

product price:  $8.49
/ea

Key Features

Plastic Material
PTFE
Plastic Thickness
0.003"
Plastic Width
6"
Plastic Length
60"
Plastic Color
White
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G15-3F-6X5
Zoro #
G2828135
UPC #
-
Country of Origin
United States

Dimensions

Plastic Thickness
0.003"
Plastic Width
6"
Plastic Length
60"
Length Tolerance
+/-0.500 in
Width Tolerance
+/-0.250 in
Width
6"
Thickness
0.003"
Length
60"
Nominal Size
6 in W x 60 in L
Plastic Length Tolerance
+/-0.500 in
Plastic Width Tolerance
+/-0.250 in

Details

Item
Film Stock
Plastic Material
PTFE
Plastic Color
White
Max. Temp. (F)
500 Degrees F
Min. Temp. (F)
-400 Degrees F
Color
White
Standards
AMS 3652, ASTM D3308, FDA
Impact Strength
3 ft-lb/in
Operating Temp. Range
-400 Degrees to 500 Degrees F
Thickness Tolerance
+/-0.0003 in
Plastic Properties
Abrasion Resistant, Chemical/Corrosion Resistant, Electrical Applications, FDA Approved, Flame Retardant, Impact Resistant, Moisture Resistant, Non-Friction Surface, Oil Resistant, UV Tolerant, Wear Material
Material Type
Standard Grade
Plastic Grouping
Film Stock
Material Color Family
White
Tensile Strength
1,500 psi
Material
PTFE
Plastic Thickness Tolerance
+/-0.0003 in
Backing Type
No Backing
Friction Rating
Very Slippery
Wear Factor
Excellent
Impact Strength Rating
Good
Tensile Strength Rating
Poor
Friction Coefficient
0.08
Corrosion and Chemical Resistance
Excellent
Grade
Standard
UV Resistant
Yes
Shape
Rectangle
Maximum Temperature
550 Degrees F
Plastic Hardness
55D
Weight
0.008 lb
Plastic Clarity
Translucent
Temperature Range
-350 Degrees to 550 Degrees F
Water Absorption
0.01 %
Machinability
Not Rated
Plastic Density
138.24 lb/cu ft
Elongation
200 %
Plastic Hardness Rating
Medium Soft
Water Absorption Rating
Excellent
Minimum Temperature
-350 Degrees F
Wear Rate
3.40 x 10^-4 cu mm/N-m
UV-Resistant
UV-Resistant
Product Type
Plastic Film
Flexural Modulus
0.04 GPa
Product Form
Roll
FDA Compliance
Not FDA Compliant
Static-Resistant
Not Static-Resistant
Rockwell Hardness
50 HRR
Scratch-Resistant
Not Scratch-Resistant
Dielectric Strength
80 kV/mm
Coefficient of Thermal Expansion
13 x 10^-5
Fabrication
Molded
Light Transmission
9 %
Metal Detectable
Not Metal Detectable
Shore Hardness
55 Shore D

Description

PTFE Roll, PTFE, Grade Standard, Plastic Length 5 ft, Plastic Width 6 in, Plastic Thickness 3 mil, White, Plastic Clarity Translucent, Tensile Strength 1,500 psi, Impact Strength 3 ft-lb/in, Friction Coefficient 0.08, Water Absorption 0.01 Percent, Temperature Range -350 Degrees to 550 Degrees F, Plastic Density 138.24 lb/cu ft, Plastic Hardness 55D
