Shop ZURN

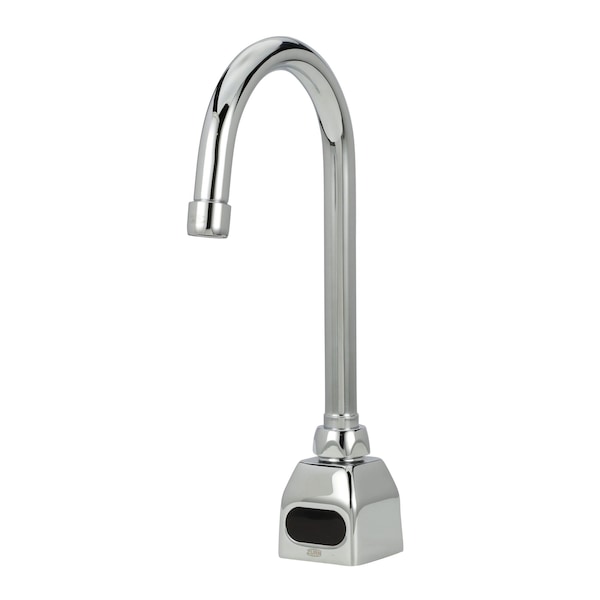

Sensor Single Hole Mount, 1 Hole Gooseneck Bathroom Faucet, Chrome plated

  • Mfr # Z6920-XL

  • Zoro # G6126041

product price:
$
667.99
/ea
Free Shipping & Returns

Key Features

Material
Cast Brass
Height
12"
Application
Commercial
Finish
Chrome
ADA Compliance
ADA Compliant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
Z6920-XL
Zoro #
G6126041
UPC #
670240381902
Country of Origin
Taiwan, Province of China

Dimensions

Height
12"
Spout Length
5 3/8 in
Manufacturers Warranty Length
3 yr
Overall Height
12"
Water Inlet Connection Size
1/2 in
Max. Installation Surface Thickness
3 in
Spout Height
12 in
Overall Width
2 1/4 in
For Mounting Hole Diameter - Minimum
1 1/8 in
For Surface Thickness - Maximum
3 in
Inlet Connection Size
1/2 in
Spout Outlet Height
7 7/8 in
For Mounting Hole Diameter - Maximum
1 1/4 in
Spout Height - Maximum
7 7/8 in

Details

Material
Cast Brass
Application
Commercial
Finish
Chrome
Item
Bathroom Sensor Faucet
ADA Compliance
ADA Compliant
Flow Outlet Type - Faucet
Laminar
Faucet Operation
Sensor
Includes
In-Line Filter
Standards
ASME A112.18.1 / CSA B125.1, UPC Lead Free Compliant
Number of Holes
1
Drain Type
None
Flow Outlet Type (Faucet)
Laminar
Green Certification or Other Recognition
WaterSense Certified
Mounting Type
Deck
Faucet Handle Type
None
Valve Type
Ball
Faucet Spout
Brass
Battery Charger CEC Compliant
CEC Compliant
Residential / Commercial
Commercial
Power Source
Battery
ADA Compliant
Yes
Number of Handles
0
Faucet Type
Bathroom Sink Faucet
Flow Outlet Type
Laminar
Mounting Hole Center to Center
Single Hole
Replacement Cartridge
4UZP3
Mounting Type - Faucet
Deck
Flow Rate
0.5 gpm
Body Material
Brass
CEC Compliant
CEC Compliant
Sensor Range
7 1/2 in
Ligature Resistant
No
Vandal Resistant Features
Vandal Resistant Outlet
Faucet Spout Shape
Gooseneck
Faucet Finish
Polished Chrome
Series
AquaSense(R)
Commercial / Residential
Commercial
Voltage
6V DC
Connection
1/2"
Compliance
ADA
Amps
2 A
Features
Infrared Convergence-Type Proximity Sensor
Faucet Body Material
Cast Brass
Replacement Cartridge Mfr. Model Number
P6900-SRK
Faucet Activation
Motion Sensor
Max. Mounting Hole Center Distance
Single Hole
Valve Type - Faucets
Solenoid Valve
Spout Reach
5 3/8 in
Temperature Control
Non-Adjustable Temperature
Battery Type
AA
Sensor Type
Fixed
Mounting Hole Center-to-Center Distance - Maximum
1 1/4 in
Temperature - Maximum
140 Degrees F
Flow Type
Laminar
Sensor Range - Maximum
8 in
Temperature - Minimum
33 Degrees F
Includes Transformer
Transformer Not Included
Temperature Control Method
Below Deck Temperature Mixing Valve
Flow Rate - Maximum
0.5 gpm
Product Type
Sensor Faucet
Pressure - Maximum
125 psi
Ligature Resistance
Not Ligature-Resistant
Spout Style
Fixed
Vandal Resistance
Vandal-Resistant Outlet
Inlet Connection Type
NPSM
Current
2 A
Time Out
30 sec
Water Supply Type
Hot and Cold Lines
CEC Compliance
CEC Compliant
Compatible Cartridge Manufacturer Part Number
P6900-SRK
Includes Drain
Drain Not Included
Warranty
3 yr
Operation Method
Motion Sensor
Spout Shape
Gooseneck
Includes Handle
Handle Not Included
For Location
Bathroom
Includes Batteries
Batteries Included
Number of Mounting Holes
1
Number of Batteries
4
Power Source - TS Only
Battery
Power Source - old
Battery

Description

Gooseneck,Chrome,Zurn,AquaSense,Brass

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
