Shop ZURN

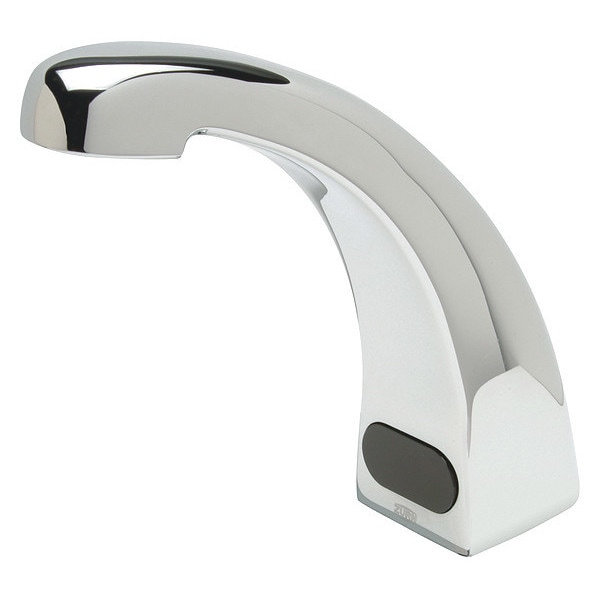

Sensor Single Hole Mount, 1 Hole Mid Arc Bathroom Faucet, Chrome plated

  • Mfr # Z6913-XL
  • Zoro # G9967526
product price:
$
454.99
/ea
Free Shipping & Returns

Key Features

Material
Cast Brass
Height
6-1/2"
Application
Commercial
Finish
Polished Chrome
Mounting Type - Faucet
Deck
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
Z6913-XL
Zoro #
G9967526
UPC #
889934216585
Country of Origin
Taiwan, Province of China
Material
Cast Brass
Application
Commercial
Finish
Polished Chrome
Item
Bathroom Sensor Faucet
Mounting Type - Faucet
Deck
CEC Compliant
CEC Compliant
Faucet Operation
Sensor
Vandal Resistant Features
Vandal Resistant Outlet
Power Source
Battery
Battery Charger CEC Compliant
CEC Compliant
Series
AquaSense(R)
Mounting Type
Deck
ADA Compliant
Yes
Green Certification or Other Recognition
WaterSense Certified
Voltage
6V DC
Number of Holes
1
Faucet Finish
Polished Chrome
Sensor Range
7 1/2 in
Amps
2 A
Green Environmental Attribute
Faucet Flow Rate 1.5 gpm Or Less
Faucet Spout
Rigid
Faucet Type
Bathroom Sink Faucet
Drain Type
None
Body Material
Brass
Faucet Handle Type
None
Valve Type
Ball
Ligature Resistant
No
Includes
In-Line Filter, Single Supply Hose
Commercial / Residential
Commercial
Number of Handles
0
Connection
3/8" Compression
ADA Compliance
ADA Compliant
Sensor Lead
6"
Flow Outlet Type
Aerated
Residential / Commercial
Commercial
Compliance
ADA
Flow Outlet Type (Faucet)
Aerated
Flow Outlet Type - Faucet
Aerated
Flow Rate
0.5 gpm
Mounting Hole Center to Center
Single Hole
Replacement Cartridge
4UZP3
Standards
ASME A112.18.1/CSA B125.1, SDWA
Faucet Spout Shape
Mid Arc
Features
Infrared Convergence-Type Proximity Sensor
Max. Mounting Hole Center Distance
Single Hole
Spout Reach
5 1/2 in
Faucet Activation
Motion Sensor
Temperature Control
Non-Adjustable Temperature
Replacement Cartridge Mfr. Model Number
P6900-SRK
Faucet Body Material
Brass
Valve Type - Faucets
Solenoid Valve
Sensor Type
Fixed
Battery Type
AA
Spout Shape
Arc
Includes Drain
Drain Not Included
Sensor Range - Maximum
7 1/2 in
Mounting Hole Center-to-Center Distance - Maximum
1 1/4 in
Product Type
Sensor Faucet
Time Out
30 sec
Temperature Control Method
Below Deck Temperature Mixing Valve
Pressure - Maximum
125 psi
Number of Batteries
4
Operation Method
Motion Sensor
Inlet Connection Type
NPSM
Number of Mounting Holes
1
CEC Compliance
CEC Compliant
Temperature - Minimum
35 Degrees F
Warranty
3 yr
Spout Style
Fixed
Flow Type
Aerated
Temperature - Maximum
140 Degrees F
Compatible Cartridge Manufacturer Part Number
P6900-SRK
Includes Handle
Handle Not Included
Current
2 A
Includes Batteries
Batteries Included
For Location
Bathroom
Vandal Resistance
Vandal-Resistant Outlet
Water Supply Type
Hot and Cold Lines
Flow Rate - Maximum
0.5 gpm
Includes Transformer
Transformer Not Required
Ligature Resistance
Not Ligature-Resistant
Power Source - TS Only
Battery
Power Source - old
Battery

Dimensions

Height
6-1/2"
Overall Height
6-1/2"
Manufacturers Warranty Length
3 yr
Spout Length
6 1/2 in
Water Inlet Connection Size
1/2 in
Max. Installation Surface Thickness
3 in
Spout Height
6 3/8 in
Overall Width
2 in
For Mounting Hole Diameter - Maximum
1 1/4 in
For Mounting Hole Diameter - Minimum
1 1/8 in
Spout Height - Maximum
5 3/4 in
Spout Outlet Height
5 11/16 in
For Surface Thickness - Maximum
3 in
Inlet Connection Size
1/2 in
Fits Chest Size
Infrared Convergence-Type Proximity Sensor

Description

Mid Arc,Chrome,Zurn,AquaSense,Brass
