Butt Splice Wire Connector, 14 AWG Max, Bare, None Insulation, 600 V, 1000 PK

  • Mfr # MU14BCHTK

  • Zoro # G5781711

product price:  $168.99
/pk 1000, $0.17/ea
Free Shipping & Returns

Key Features

Type
Butt Splice
Color
Bare
Minimum Wire Size
16 AWG
Insulation Material
None
Maximum Voltage
600 V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MU14BCHTK
Zoro #
G5781711
UPC #
00054007017615
Country of Origin
United States

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG

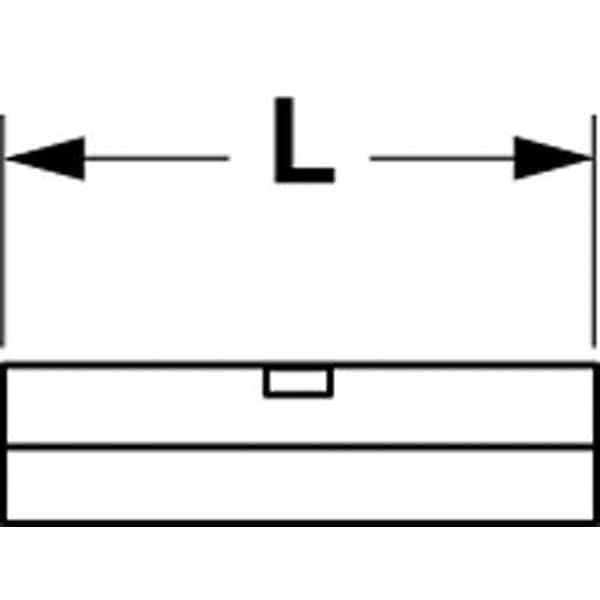

Overall Length
0.56 in
Barrel Inside Dia.
0.09 in
Barrel Inside Diameter
0.09 in
For Minimum Wire Size - Solid
16 AWG
For Maximum Wire Size - Solid
14 AWG
Strip Length
3/8 in

Details

Item
Wire Connector
Type
Butt Splice
Color
Bare
Insulation Material
None
Maximum Voltage
600 V
Maximum Operating Temperature
900 Degrees F
RoHS Compliant
Yes
Material
Stainless Steel
Seam Style
Butted
Finish
Nickel Plated
Termination Style
Crimp
Contact Finish
Nickel
Contact Material
Steel
Body Finish
Nickel Plated
Body Material
Stainless Steel
Compatible Installation Tool Model Number
TH-440, TH450, TR-490
Special Features
This Butt Connector uses Chamfered Barrel Ends to Provide Fast Easy Wire Insertion from Both Ends and a Built in Wire Stop for Correct Positioning
For Wire Type
Stranded
Insulation Color
Bare

Description

Butt Splice Connector, Connection Type Crimp, Insulation Material None, Insulation Color Bare, Maximum Operating Temperature 900 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Standards RoHS 2011/65/EU, Termination Style Crimp, Contact Finish Nickel, Contact Material Steel, Overall Length 0.56 in, Seam Style Butted, Barrel Inside Diameter 0.09 in, Body Finish Nickel Plated, Body Material Stainless Steel
