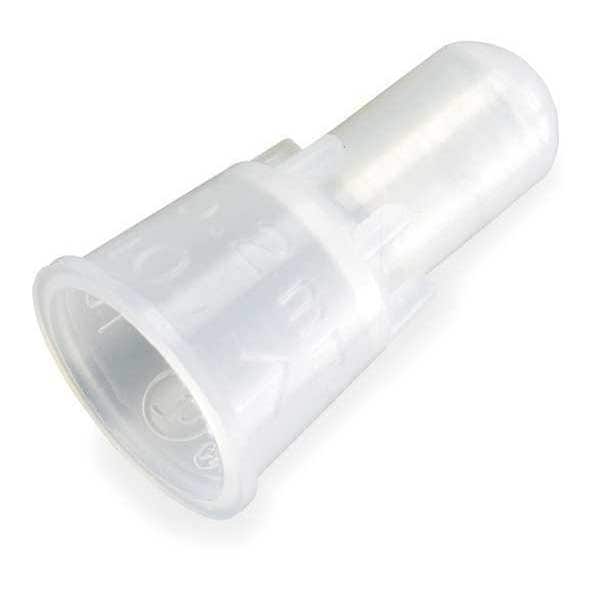

Crimp Wire Connector, 16 AWG Max, Clear, Nylon Insulation, 600 V, 100 PK
Mfr # S-11-A
Zoro # G1611285
product price:Â
$
53.19
/pk 100, $0.53/ea
Key Features
Type
Crimp
Color
Clear
Minimum Wire Size
22 AWG
Insulation Material
Nylon
Maximum Voltage
600 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- S-11-A
- Zoro #
- G1611285
- UPC #
- 00051128589977
- Country of Origin
- Taiwan, Province of China
Dimensions
- Maximum Wire Size
- 16 AWG
- Minimum Wire Size
- 22 AWG
- Length
- 0.83 in
- Overall Length
- 0.83 in
- Strip Length
- 1/2 in
- Wire Rope Length
- 0.83 in
Details
- Item
- Wire Connector
- Type
- Crimp
- Color
- Clear
- Insulation Material
- Nylon
- Maximum Voltage
- 600 V
- Minimum Wire Combination
- (2) 22 AWG
- Maximum Wire Combination
- 16 AWG
- Minimum Operating Temperature
- -40 Degrees F
- Maximum Operating Temperature
- 221 Degrees F
- RoHS Compliant
- Yes
- Standards
- CSA Certified, UL Listed
- Special Features
- Built-in Wire Stop for Correct Positioning, Smooth, Flared End Provides Quick Wire Insertion
- For Wire Type
- Copper Wire
- Termination Style
- Crimp
- Compatible Installation Tool Model Number
- TH-440, TH-450
- Seam Style
- Butted
- Material
- Copper
- Contact Material
- Copper
Description
Closed-End Crimp Connector, Color Clear, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 22 AWG, Maximum Wire Combination 16 AWG, Contact Material Copper, RoHS Compliant Yes, Standards CSA Certified, UL Listed, Compatible Installation Tool Model Number TH-440, TH-450, For Wire Type Copper Wire, Maximum Wire Size 16 AWG, Minimum Operating Temperature -40 Degrees F, Minimum Wire Size 22 AWG, Overall Length 0.83 in
