3M Dbi-Sala

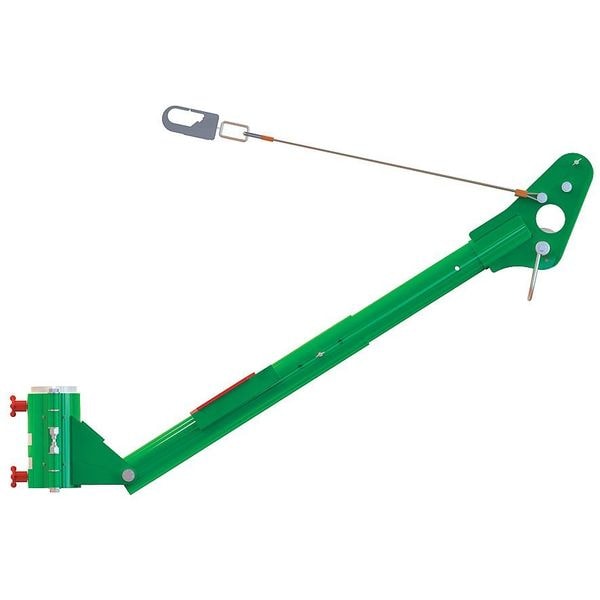

Advanced Davit Arm

product price: $3,071.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Weight Capacity 450 lb
  • Series Advanced
  • Finish Powder Coated, Zinc Plated
  • Color Green
  • Offset 32-1/2 to 36-1/4 in
See all product information

Product Information

Dimensions

Height 36 1/4 in
Extension Height 5 7/8 ft
Safe Working Radius 32 in

Details

Item Fall Arrest Post Davit Arm
Weight Capacity 450 lb
Series Advanced
Finish Powder Coated, Zinc Plated
Color Green
Offset 32-1/2 to 36-1/4 in
Material Aluminum
Max. Working Load 310 lb
For Use With SRL, Winch
Standards OSHA, ANSI Z359.1
Mounting Holes 3
Includes Mounting Hardware Yes
No. of Mounting Holes 4
Post Anchor Component Arm
Attachment Point SRL Bracket
Anchor Installation Reusable
Anchor Material Aluminum
Brand and Series 3M DBI-SALA Advanced
Base Material Aluminum
Workers per System 2
Arm Offset Range 34 in
OSHA Standards Met OSHA 1910.140, OSHA 1926.502
Includes D-Ring Tie-Off Yes
Arm Offset (Maximum) 34 in
Number of Mounting Holes 4

Description

Fall Arrest Post Davit Arm, Attachment Point SRL Bracket, Extension Height 5 7/8 ft, For Use With SRL, Winch, Workers per System 2, For Surface Material Not Applicable, Overall Height 3 ft, Weight Capacity 450 lb, OSHA Standards Met OSHA 1910.140, OSHA 1926.502, Number of Mounting Holes 4, Anchor Installation Reusable, Includes D-Ring Tie-Off Yes, Arm Offset (Maximum) 34 in, Anchor Material Aluminum, Base Material Aluminum, Color Green, Includes Mounting Hardware Yes, Mounting Location Post
