  9. Electrical Tape, White, 60 yd L, 1 in W

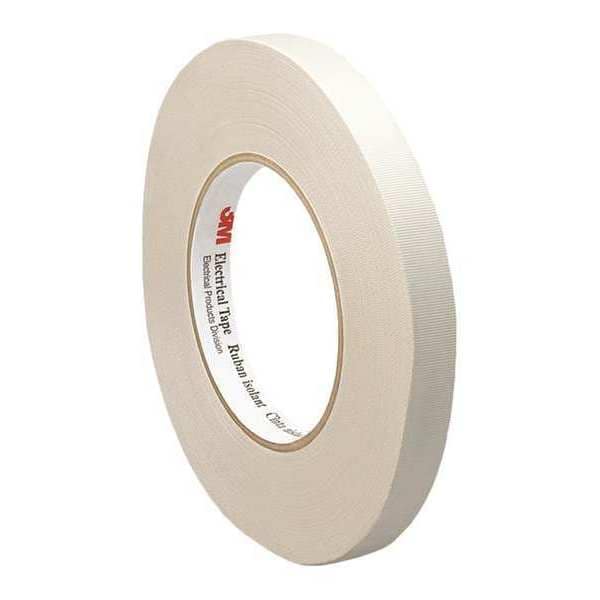

3M Electrical Tape, White, 60 yd L, 1 in W 27 - main

Electrical Tape, White, 60 yd L, 1 in W

  • Mfr # 27

  • Zoro # G5796887

product price: $56.65
/ea
Sold in multiples of 2 for $113.30

Key Features

Tape Color
White
Series
27
Tape Thickness
5 mil
Performance Temp.
32 Degrees to 302 Degrees F
Tape Tensile Strength
150 lb/in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
27
Zoro #
G5796887
UPC #
888519012598
Country of Origin
United States

Dimensions

Tape Thickness
5 mil
Width
1"
Length
60 yd.
Imperial Tape Width
1 in
Imperial Tape Length
180 ft
Metric Tape Length
55 m
Metric Tape Width
25.4 mm

Details

Tape Color
White
Series
27
Performance Temp.
32 Degrees to 302 Degrees F
Item
Insulating Electrical Tape
Tape Tensile Strength
150 lb/in
Color
White
Adhesion Strength
30 oz./in.
Material
Thermosetting Rubber (Adhesive), Glass Cloth (Backing)
Features
The Glass Cloth is Specially Treated and Prepared to Provide Corrosion-Free Protection; The Glass Cloth will Not Shrink, Rot or Burn, has a High Tensile Strength and is Printable; Provides Heat Stable Insulation for Hot Spot Applications; Operates in 600-Volt Dry Applications Requiring High Mechanical Strength and Resistance to High Temperatures
Tape Backing Material
Fiberglass Cloth
Standards
CSA, CSA LR93411, UL Listed, UL E17385
Duct Tape Type
Crown
Elongation
5 %
Tape Backing Construction
Cloth
Tape Brand
3M(TM)
Tape Sub-Type
Abrasion-Resistant
Breaking Strength
150 lb/in
Tape Type
Cloth
Minimum Tape Performance Temperature
32 Degrees F
Tape Adhesive Material
Rubber
Adhesive Properties
Pressure Sensitive Adhesive
Tape Adhesive Format
Single-Sided
Printed Message
Unprinted
Maximum Tape Performance Temperature
302 Degrees F
Adhesion to Steel
30 oz/in
Tape Resistance Properties
Abrasion-Resistant, High Temperature-Resistant
Sub-Brand
Scotch(R)
Voltage Rating
600 V
Product Form
Continuous Roll
Insulation Resistance
4.80 x 10^4 megaohm
Breakdown Voltage
3,000 V
Environment
High Temperature
Specifications Met
CSA, UL
Tape Properties
Pressure Sensitive Adhesive
For Temperature Application
High Temperature

Description

Electrical Tape, Abrasion-Resistant, Fiberglass Cloth, Tape Adhesive Material Rubber, 1 in, 60 yd, 5 mil, 3M(TM), Scotch(R), Series 27, White, Minimum Tape Performance Temperature 32 Degrees F, Maximum Tape Performance Temperature 302 Degrees F, Voltage Rating 600 V, Continuous Roll, Single-Sided
