  5. ElectricalTape, White, 60ydL, 1inW, PK36

This item is Discontinued.

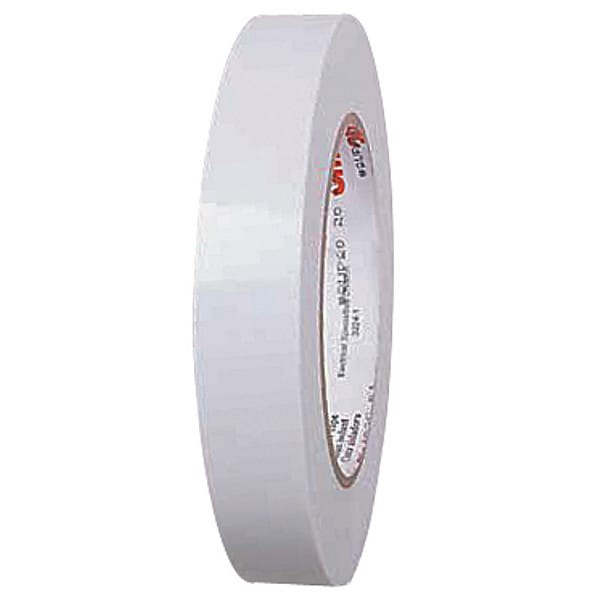

3M ElectricalTape, White, 60ydL, 1inW, PK36 20-1"X60YDS

ElectricalTape, White, 60ydL, 1inW, PK36 (Discontinued)

  • Mfr # 20-1"X60YDS
  • Zoro # G5485085
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
20-1"X60YDS
Zoro #
G5485085
UPC #
00051138691769
Country of Origin
United States

Dimensions

Tape Thickness
5 mil
Width
1"
Length
60 yd.
Metric Tape Length
55 m
Imperial Tape Length
180 ft
Imperial Tape Width
1 in
Metric Tape Width
25.4 mm

Details

Tape Color
White
Series
20
Performance Temp.
Up to 311 Degrees F
Item
Insulating Electrical Tape
Tape Tensile Strength
45 lb/in
Color
White
Duct Tape Adhesive
Acrylic
Material
Backing: Flame Retardant Epoxy Film; Adhesive: Acrylic
Adhesion Strength
30 oz./in.
Temperature Range
32 to 311 Degrees F
Shape
Continuous Roll
Standards
ASTM D1000, UL E17385, Guide OANZ2, RoHS, UL 510
UV Resistance
No
Max. Voltage
8,000
Tape Backing Material
Epoxy Film
Tape Brand
3M(TM)
Tape Resistance Properties
Abrasion-Resistant, Heat-Resistant, Oil-Resistant, Solvent-Resistant
Tape Sub-Type
Abrasion-Resistant
Specifications Met
RoHS, UL
Minimum Tape Performance Temperature
32 Degrees F
Printed Message
Unprinted
Product Form
Continuous Roll
Breaking Strength
45 lb/in
Elongation
120 %
Voltage Rating
600 V
Tape Adhesive Material
Acrylic
Maximum Tape Performance Temperature
311 Degrees F
Adhesive Properties
Pressure Sensitive Adhesive
Insulation Resistance
1.00 x 10^6 megaohm
Tape Backing Construction
Film
Tape Properties
Pressure Sensitive Adhesive
Breakdown Voltage
8,000 V
Tape Type
Film
Tape Conformability
High Conformability
Adhesion to Steel
30 oz/in
Tape Adhesive Format
Single-Sided
Self-extinguishing
Self-Extinguishing

Description

Electrical Tape, Abrasion-Resistant, Epoxy Film, Tape Adhesive Material Acrylic, 1 in, 60 yd, 5 mil, 3M(TM), Series 20, White, Minimum Tape Performance Temperature 32 Degrees F, Maximum Tape Performance Temperature 311 Degrees F, Voltage Rating 600 V, Continuous Roll, Single-Sided, Package Quantity 36
