Shop 3M

Female Disconnect, Bare, 12-10AWG, PK500

  • Mfr # MI10-250DFK

  • Zoro # G5574326

product price:  $304.99
/pk 500, $0.61/ea
Free Shipping & Returns

Key Features

Insulation
None
Insulation Color
Bare
Connection Type
Crimp
Insulation Type
Non-Insulated
Wire Range
12 to 10 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MI10-250DFK
Zoro #
G5574326
UPC #
00054007695578
Country of Origin
United States

Dimensions

Tab Size
0.032 in x 0.250 in

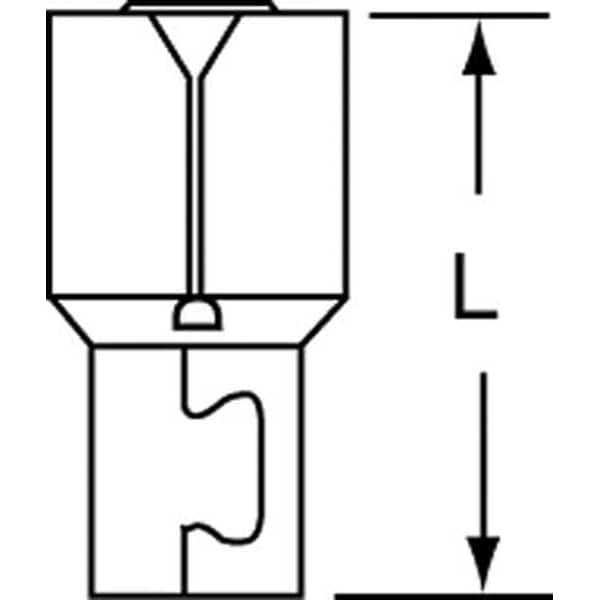

Overall Length
0.64 in
Barrel Inside Dia.
0.12 in
Maximum Wire Size
10 AWG
Barrel Inside Diameter
0.128 in
Tab Width
0.25 in
Minimum Wire Size
12 AWG
Barrel Size
Standard
Tab Thickness
0.032 in
Mates with Male Tab Width (W')
0.25 in
Barrel Length
0.25 in
Mates with Female Width
0.25 in
Wire Rope Length
0.64 in

Details

Item
Wire Disconnect
Insulation
None
Insulation Color
Bare
Connection Type
Crimp
Insulation Type
Non-Insulated
Wire Range
12 to 10 AWG
Seam
Brazed
Max. Voltage
600 V
Max. Temp.
347 Degrees F
Connection Material
Brass
Standards
CSA Certified, UL Listed
Contact Finish
Tin
Termination Style
Crimp
Barrel Style
Interlocking
Minimum Operating Temperature
347 Degrees F
Terminal Type
Socket
Special Features
Allows for Quick and Easy Disconnect of Wires, Dents and Rolled Edges of this Female Disconnect Terminal Offer Excellent Holding Force
Insulation Material
None
Maximum Voltage
600 V
Insulation Coverage
None
Seam Style
Butted
RoHS Compliant
Yes
Contact Material
Brass
Maximum Operating Temperature
347 Degrees F
Fastener Orientation
Female
Disconnect Type
Female
Disconnect Style
Quick Disconnect

Description

Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Quick Disconnect, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 347 Degrees F, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.128 in
