Shop TE CONNECTIVITY

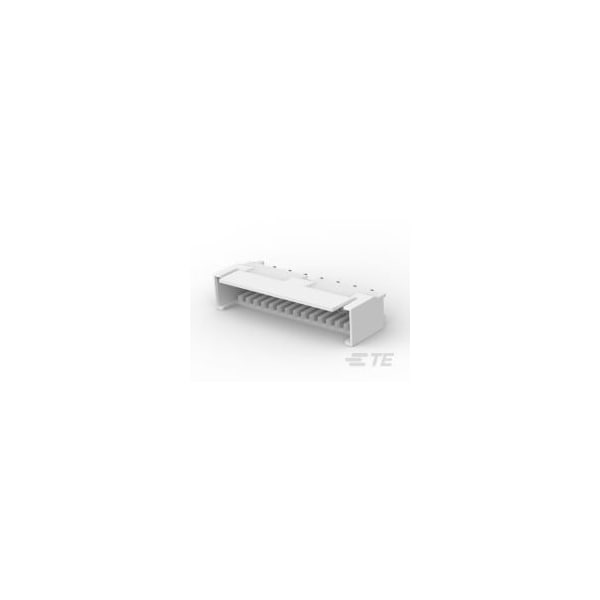

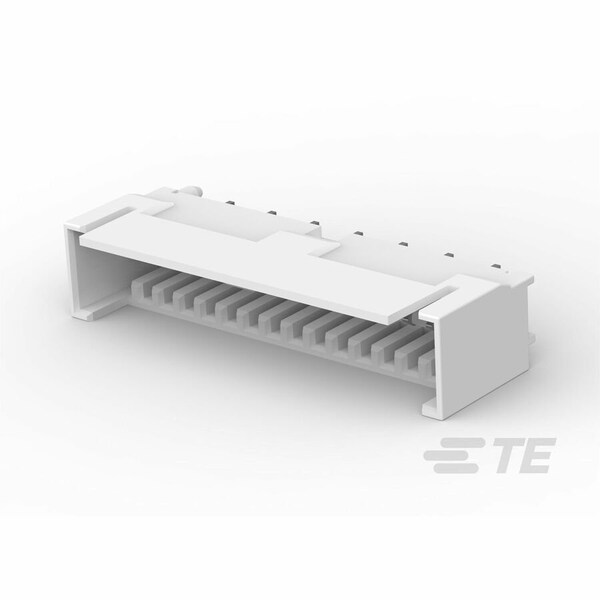

15P RAST 2.5 Tab Header Ex- Locking THV

  • Mfr # 1-1971818-5
  • Zoro # G700941297
product price:
$
1.59
/ea
Sold in multiples of 39 for $62.01

Key Features

Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Current
6 A
Height
15.5 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1-1971818-5
Zoro #
G700941297
UPC #
-
Country of Origin
China

Dimensions

Height
15.5 mm
Length
40.1 mm
Contact Plating Thickness
149.6 µin

Details

Item
PCB Mount Header
Color
Natural
Max. Voltage
250V AC
Maximum Voltage
250 V AC
Current
6 A
Maximum Operating Temperature
125 Degrees C
UL 94 Flammability Rating
V-0
For Use With
Connector/Cable Assembly
Max. Temp.
125°C
Hole Center to Center
2.5 mm
Material
Nylon
Connection Material
Copper Alloy
Features
Shrouded
Contact Finish
Tin Plated
Current Rating
6 A
Number of Contacts
15
Contact Type
Tab
Number of Rows
1
Connector Terminates To
Printed Circuit Board
Flammability Rating
UL 94 V-0
Terminal Finish
Matte Tin Plated
