Female Disconnect, Red, 22-18AWG, PK1000
- Mfr # MNG18-187DFK
- Zoro # G5719831
product price:Â
$
550.99
/pk of 1000, $0.55/ea
Free Shipping & Returns
Key Features
Insulation
Partial
Insulation Color
Red
Wire Range
22 to 18 AWG
Insulation Type
Nylon
Connection Type
Crimp
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MNG18-187DFK
- Zoro #
- G5719831
- UPC #
- 00054007024057
- Country of Origin
- United States
- Item
- Female Disconnect
- Insulation
- Partial
- Insulation Color
- Red
- Wire Range
- 22 to 18 AWG
- Insulation Type
- Nylon
- Connection Type
- Crimp
- Seam
- Butted
- Max. Voltage
- 600V
- Max. Temp.
- 221 Degrees F
- Standards
- CSA Certified, RoHS Compliant, UL Listed
- Connection Material
- Tin-Plated Brass
- Terminal Type
- Disconnect
- Fastener Orientation
- Female
- Terminal Style
- Standard
- Maximum Operating Temperature (Celsius)
- 105°C
- Insulation Material
- Nylon with Insulation Grip
- Connector Style
- Insulation Displacement
- Connector / Connector Tool
- Connector
- Disconnect Type
- Female
Dimensions
- Overall Length
- 0.77 in
- Tab Size
- 0.020 in x 0.187 in
- Barrel Inside Dia.
- 0.085 in
- Connection Width
- 0.187 in
- Mates with Female Width
- 0.187 in
- Maximum Insulation Outer Diameter
- 0.145 in
- Diameter (D)
- 0.23 in
- Barrel Length
- 0.25 in
- Barrel Inside Diameter
- 0.085 in
- Tab Width
- 0.25 in
- Overall Diameter
- 0.23 in
- Minimum Conductor Size
- 22 AWG
- Maximum Insulation Outside Diameter
- 0.145 in
- Maximum Conductor Size
- 18 AWG
- Pad Width
- 0.187 in

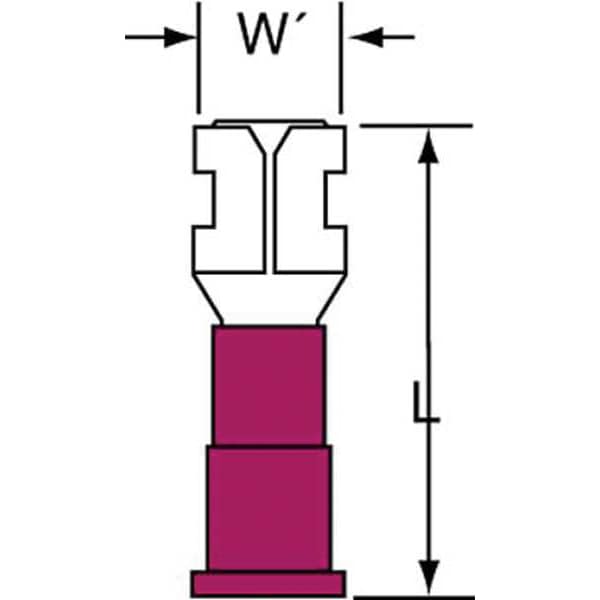

- Mates with Male Tab Width (W')
- 0.187 in
- Wire Rope Length
- 0.77 in
- Length
- 0.77 in
Description
Female Disconnect, Insulation Color Red, Terminal Type Disconnect, Standards CSA Certified, RoHS Compliant, UL Listed, Insulation Type Nylon, Overall Length 0.77 in, Package Quantity 1000
