Female Disconnect, Red, 22-18AWG, PK1000
Mfr # MNI18-250DFIK
Zoro # G5828803
product price: $0.52
/eaSold in multiples of 1000 for $520.00
Key Features
Insulation
Full
Insulation Color
Red
Insulation Type
Nylon
Wire Range
22 to 18 AWG
Connection Type
Crimp
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNI18-250DFIK
Zoro #
G5828803
UPC #
00054007695776
Country of Origin
United States
Dimensions
Tab Size
0.032 in x 0.250 in

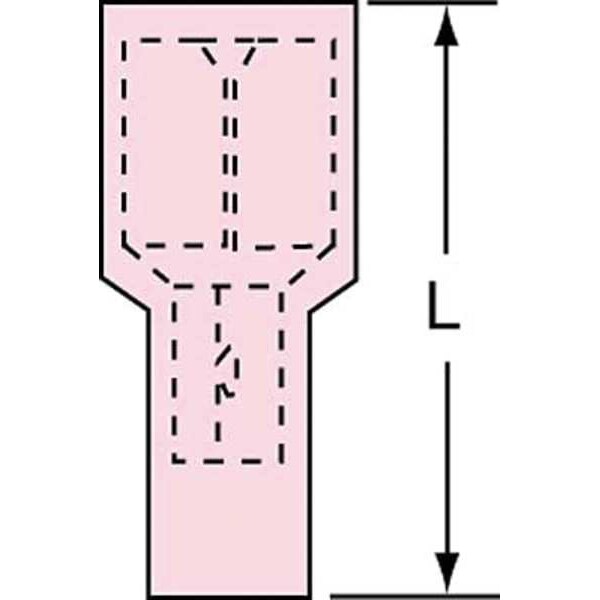

Overall Length
0.91 in
Barrel Inside Dia.
0.076 in
Tab Width
0.25 in
Barrel Outside Diameter
0.145 in
Minimum Wire Size
22 AWG
Tab Thickness
0.032 in
Barrel Inside Diameter
0.076 in
Maximum Wire Size
18 AWG
Barrel Size
Standard
Mates with Male Tab Width (W')
0.25 in
Barrel Length
0.25 in
Male Tab Width (W')
0.250 in
Mates with Female Width
0.25 in
Description
Female Disconnect, Contact Finish Tin, Contact Material Brass, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.076 in, Barrel Outside Diameter 0.145 in
