  6. Female Disconnect, Red, 22-18AWG, PK25, Connection Type: Crimp
3M Female Disconnect, Red, 22-18AWG, PK25, Connection Type: Crimp FDI18-250Q - main

Female Disconnect, Red, 22-18AWG, PK25, Connection Type: Crimp

  • Mfr # FDI18-250Q

  • Zoro # G5187052

product price:  $10.49
/pk 25, $0.42/ea

Key Features

Insulation
Full
Material
Plastic
Insulation Color
Red
Connection Type
Crimp
Insulation Type
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FDI18-250Q
Zoro #
G5187052
UPC #
00051128600030
Country of Origin
United States

Dimensions

Tab Size
0.032 in x 0.250 in
Overall Length
0.87 in
Barrel Inside Dia.
0.08 in
Maximum Conductor Size
18 AWG
Barrel Length (Metric)
6.35 mm
Overall Length (Metric)
22.098 mm
Connection Width (Imperial)
0.25 in
Barrel Inside Diameter
0.08 in
Overall Length (Imperial)
0.87 in
Mates with Female Width
0.25 Inch
Tab Width
0.25 in
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Barrel Length (Imperial)
0.25 Inch
Overall Diameter (Imperial)
0.23 in
Overall Width (Imperial)
0.37 in
Pad Width
0.25 in
Conductor Size
22 - 18 AWG
Connection Width (Metric)
6.35 mm
Diameter (D)
0.23 Inch
Overall Width (Metric)
9.4 mm

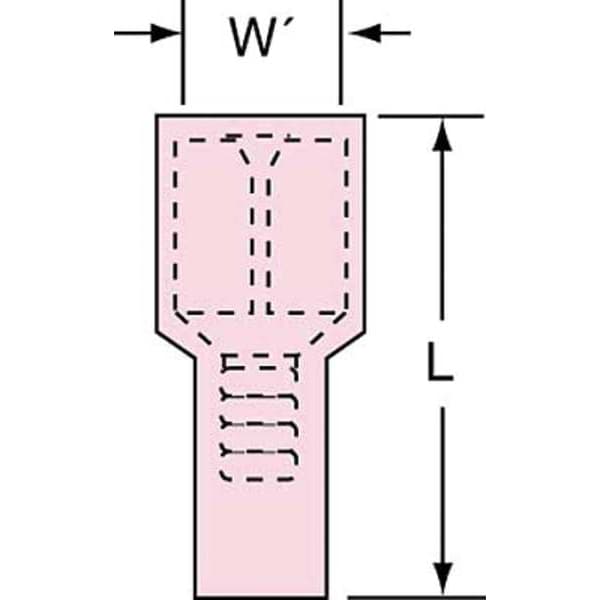

Mates with Male Tab Width (W')
0.25 Inch
Maximum Insulation Outside Diameter
0.145 in
Overall Diameter (Metric)
5.84 mm
Minimum Conductor Size
22 AWG
Maximum Insulation Outer Diameter (Imperial)
0.145 Inch
Minimum Wire Size
22 AWG
Maximum Wire Size
18 AWG
Tab Thickness
0.032 in

Details

Item
Female Disconnect
Insulation
Full
Material
Plastic
Insulation Color
Red
Connection Type
Crimp
Insulation Type
Nylon
Wire Range
22 to 18 AWG
Seam
Butted
Max. Temp.
221 Degrees F
Max. Voltage
600 V
Standards
CSA Certified, RoHS Compliant, UL Listed
Connection Material
Tin-Plated Brass
Terminal Type
Standard
Maximum Voltage Rating
600 to 1000 V
Maximum Recommended Voltage Rating
600 V
Minimum Wire Gauge
22 AWG
Barrel Style
Butted
Terminal Style
Fully Insulated
Maximum Wire Gauge
18 AWG
Fastener Orientation
Female
Insulation Material
Nylon
Disconnect Type
Female
Max. Number of Cores
415
Contact Material
Brass
Maximum Voltage
600 V
Termination Style
Crimp
Insulation Coverage
Full Coverage
Seam Style
Butted

Description

Wire Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Quick Disconnect, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, Seam Style Butted, Standards EU Compliant, Barrel Inside Diameter 0.08 in, Barrel Style Not Applicable
