Fork Terminal, #10 Stud Size, 10 AWG, 600 V, Vinyl Insulated, Yellow, Crimp Termination Only

  • Mfr # MV10-10FK

  • Zoro # G5527943

product price:
$
256.99
/pk 500, $0.51/ea
Free Shipping & Returns

Key Features

Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MV10-10FK
Zoro #
G5527943
UPC #
00054007019800
Country of Origin
United States

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
12 AWG
Stud Size
#10
Overall Length
1.03 in
Tongue Width - Wire Connector
0.38 in
Barrel Inside Dia.
0.135 in
Tongue Width
0.38 in
Maximum Insulation Outer Diameter
0.25 in
Barrel Length
0.25 in
Tongue Thickness
0.04 in
Wire Rope Length
1.03 in
Length
1.03 in

Details

Item
Fork Terminal
Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Insulation Type
Vinyl
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed
Max. Temp.
221 Degrees F
Max. Voltage
600 V
Wire Range
12 to 10 AWG
Terminal Type
Standard
Terminal Connection
Crimp
Connection Material
Copper
Connection Type
Crimp
Seam
Brazed
Solution for
Wireless Network Infrastructure Accessories

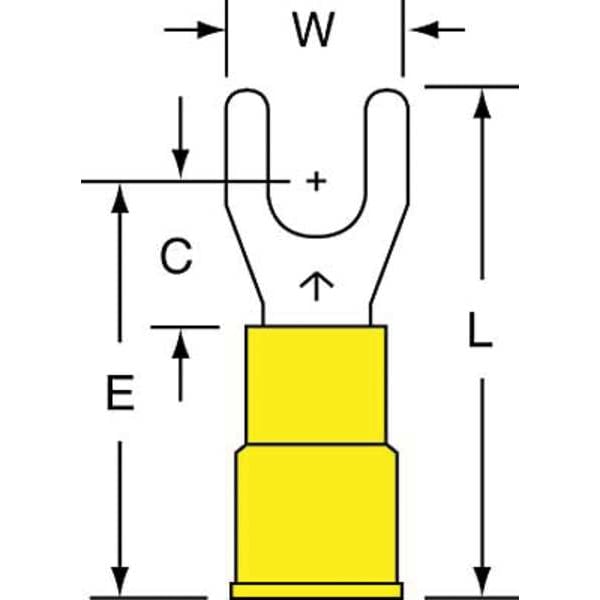

Clearance (C)
0.29 in
Seam Style
Brazed
Insulation Coverage
Partial Coverage
Minimum Operating Temperature
-40 Degrees F
Barrel Style
Brazed
Series
MV10
Special Features
3M(TM) Scotchlok(TM) Standard Fork Terminal is Color-Coded for Quick and Easy Identification of the Wire Size Required. It has a Brazed-Seam Barrel that is Covered by a Funnel-Designed, Polyvinyl Chloride Sleeve to Guide the Wire into Position While Providing Electrical Contacts and Mechanical Stress Relief at the Point of Insulation. The Abrasion-Resistant, Rigid-Molded
Contact Finish
Tin
Insulation Material
Vinyl

Description

Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Yellow, Insulation Material Vinyl, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 10 AWG, Stud Size #10, Termination Style Crimp, Seam Style Brazed, Standards CSA, RoHS 2011/65/EU, UL, Barrel Length 0.25 in, Barrel Style Brazed, Connection Material Copper, Connection Type Crimp, Minimum Operating Temperature -40 Degrees F, Minimum Wire Size 12 AWG, Overall Length 1.03 in
