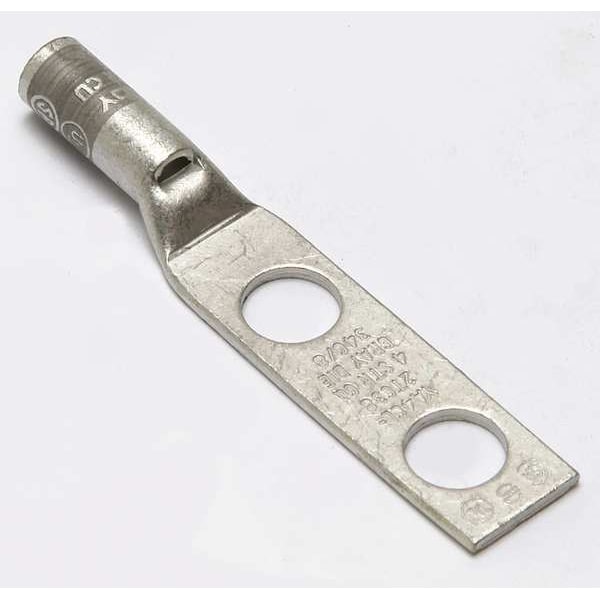

Two-Hole Compression Lug, 4 AWG Max, 3/8 in Stud, Standard Barrel, Copper, Gray
Mfr # YA4CL2TC38
Zoro # G4684827
product price:Â $9.99
/eaKey Features
For Wire Size
4 AWG
For Conductor Material
Copper
For Stud Size
3/8 in
Material
Copper
Barrel Size
Standard
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- YA4CL2TC38
- Zoro #
- G4684827
- UPC #
- 781810559581
- Country of Origin
- United States
Dimensions
- For Wire Size
- 4 AWG
- For Stud Size
- 3/8 in
- Barrel Size
- Standard
- Tongue Width
- 0.58 in
- Cable Size
- 4 AWG
- Width
- 0.58"
- Length
- 2.96"
- Barrel Length
- Short
- Overall Width
- 0.59 in
- Overall Length
- 2.96 in
- Length (Straight Wireway)
- 2.96 in
- Strip Length
- 7/8 in
- For Stranded Copper Wire Size - Minimum
- 4 AWG
- Tongue Length
- 0.76 in
- Hole Size
- 0.39 in
- Barrel Outside Diameter
- 0.34 in
- Tongue Thickness
- 0.08 in
- For Stranded Copper Wire Size - Maximum
- 4 AWG
- Dimension - Hole Size mm
- 10 mm
- Dimension - D inch
- 1.83 in
- Dimension - Stud Size inch
- 44993
- Dimension - Strip Length inch
- 7/8 in
- Dimension - Pad Width inch
- 0.58 in
- Dimension - Hole Size inch
- 0.39 in
- Dimension - B Length fraction
- 13/16 in
- Dimension - N inch
- 0.34 in
- Dimension - Z inch
- 0.42
- Conductor - Copper Str Size Range
- 4 AWG
- Dimension - Hole Size fraction
- 2023-03-08
- Dimension - Bolt Size fraction
- 2023-03-08
- Conductor - Copper Str Size
- #4 AWG
- Dimension - Length Overall inch
- 2.96 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Stud Size fraction
- 2023-03-08
- Dimension - B Length inch
- 0.81 in
- Conductor - Copper Str Navy Size Range
- 40 (19) Navy
- Conductor Size
- 4 AWG
- Conductor - Copper Str Navy Size
- 40 (19) Navy
- Dimension - Outside Diameter inch
- 0.34 in
- Dimension - L Length Overall mm
- 75 mm
- Dimension - Bolt Size inch
- 0.38
Description
Compression Lug, Barrel Size Standard, Color Code Gray, Die Code 346, 8, Tongue Angle Straight, Tongue Width 0.58 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 4 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Standards CSA Certified, UL 486A-486B, UL Listed, Number of Holes 2
