Fork Terminal, #4 Stud Size, 14 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 1000 PK
- Mfr # MU14-4FB/SK
- Zoro # G5490493
product price:Â
$
171.99
/pk of 1000, $0.17/ea
Free Shipping & Returns
Key Features
Terminal Shape
Block Fork
Termination Style
Crimp Termination Only
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Insulation Coverage
None
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MU14-4FB/SK
- Zoro #
- G5490493
- UPC #
- 00054007022640
- Country of Origin
- United States
- Item
- Fork Terminal
- Terminal Shape
- Block Fork
- Termination Style
- Crimp Termination Only
- Insulation Color
- Bare
- Insulation Coverage
- None
- Insulation Type
- Bare
- Contact Material
- Copper
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 347 Degrees F
- Standards
- CSA Certified, UL Listed
- Terminal Connection
- Crimp
- Connection Material
- Copper
- Max. Voltage
- 600 V
- Max. Temp.
- 347 Degrees F
- Wire Range
- 16 to 14 AWG
- Seam
- Butted
- Terminal Type
- Block
- Connection Type
- Crimp

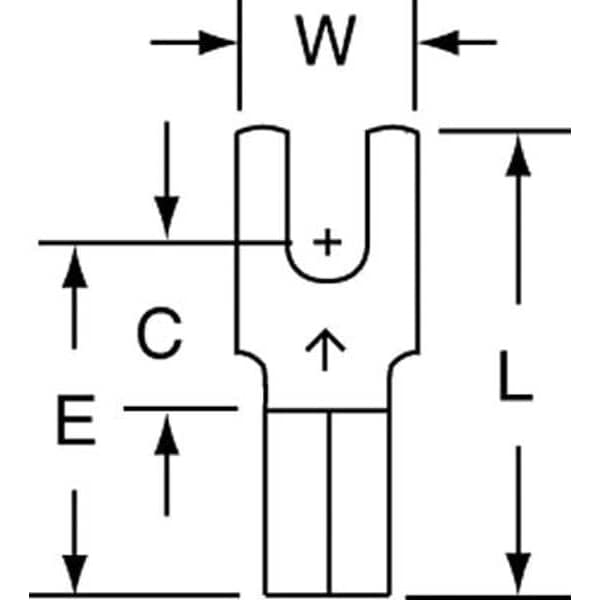

Dimensions
- Maximum Wire Size
- 14 AWG
- Minimum Wire Size
- 16 AWG
- Stud Size
- #4
- Overall Length
- 0.65 in
- Tongue Width - Wire Connector
- 0.25 in
- Minimum Stud Diameter
- 0.112 in
- Tongue Width
- 1/4 in
Description
Fork Terminal, Insulation Color Bare, Stud Size #4, Standards CSA Certified, UL Listed, Connection Material Copper, Connection Type Crimp, Insulation Type Bare, Overall Length 0.65 in, Package Quantity 1000
