Fork Terminal, #6 Stud Size, 14 AWG, 600 V, Bare Insulated, Bare, Crimp Termination Only, 1000 PK
Mfr # MU14-6FLK
Zoro # G5618977
product price: $175.99
/pk 1000, $0.18/ea
Free Shipping & Returns
Key Features
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Bare
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MU14-6FLK
Zoro #
G5618977
UPC #
00054007018575
Country of Origin
United States

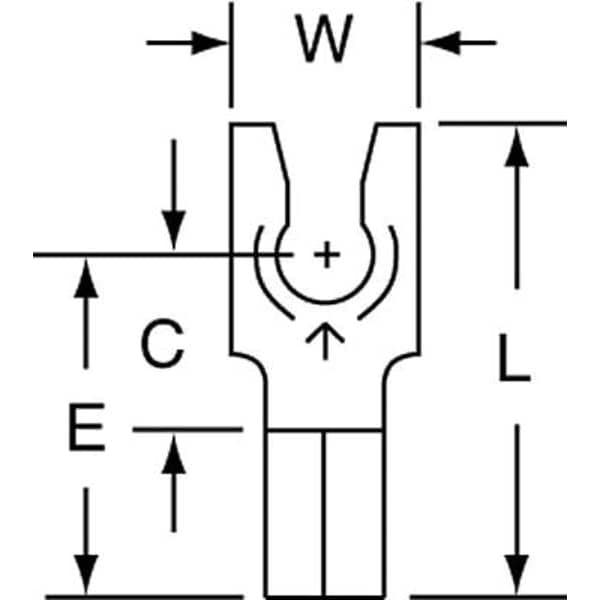

Dimensions
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Stud Size
#6
Overall Length
0.68 in
Tongue Width - Wire Connector
0.25 in
Barrel Inside Dia.
0.09 in
Tongue Width
1/4 in
Maximum Lock Width
0.27 in
Barrel Length
0.25 in
Stud Diameter
0.138 in
Description
Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 347 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #6, Termination Style Crimp, Seam Style Butted, Standards RoHS 2011/65/EU, Barrel Length 0.25 in, Barrel Style Butted, Connection Material Copper, Connection Type Crimp, Insulation Type Non-Insulated, Minimum Wire Size 16 AWG, Overall Length 0.68 in
