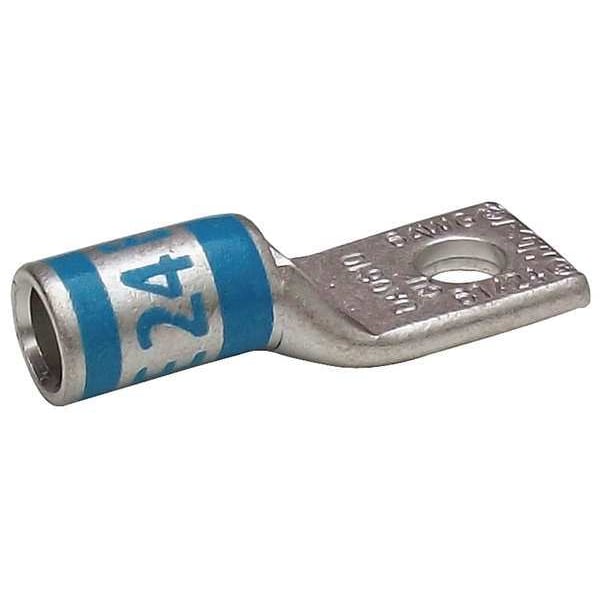

One-Hole Compression Lug, 6 AWG Max, 1/2 in Stud, Long Barrel, Copper, Blue
Mfr # 24C991
Zoro # G5206686
product price:Â $2.15
/eaKey Features
For Wire Size
6 AWG
For Conductor Material
Copper
For Stud Size
1/2 in
Material
Copper
Barrel Size
Long
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 24C991
- Zoro #
- G5206686
- UPC #
- 190735434024
- Country of Origin
- China
Dimensions
- For Wire Size
- 6 AWG
- For Stud Size
- 1/2 in
- Barrel Size
- Long
- Tongue Width
- 0.69 in
- Length
- 2.14"
- Cable Size
- 6 AWG
- Width
- 3/4"
- Barrel Length
- Long
- Length (Straight Wireway)
- 2.14 in
- Barrel Outside Diameter
- 0.31 in
- Tongue Length
- 1.08 in
- For Stranded Copper Wire Size - Minimum
- 6 AWG
- Hole Size
- 0.53 in
- Overall Width
- 0.69 in
- Barrel Inside Diameter
- 0.22 in
- For Stranded Copper Wire Size - Maximum
- 6 AWG
- Tongue Thickness
- 0.07 in
- Overall Length
- 2.14 in
- Strip Length
- 7/8 in
Description
One-Hole Lug Compression Connector, Barrel Size Long, Color Code Blue, Die Code 24, Tongue Angle Straight, Tongue Width 0.69 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 6 AWG, Inspection Hole Yes, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 1, RoHS Compliant Yes
