Fork Terminal, #8 Stud Size, 18 AWG, 600 V, Bare Insulated, Red, Crimp Termination Only, 1000 PK
Mfr # M18-8FBK
Zoro # G5532825
product price: $227.99
/pk 1000, $0.23/ea
Free Shipping & Returns
Key Features
Terminal Shape
Block Fork
Termination Style
Crimp Termination Only
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Insulation Coverage
None
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
M18-8FBK
Zoro #
G5532825
UPC #
00054007012047
Country of Origin
United States

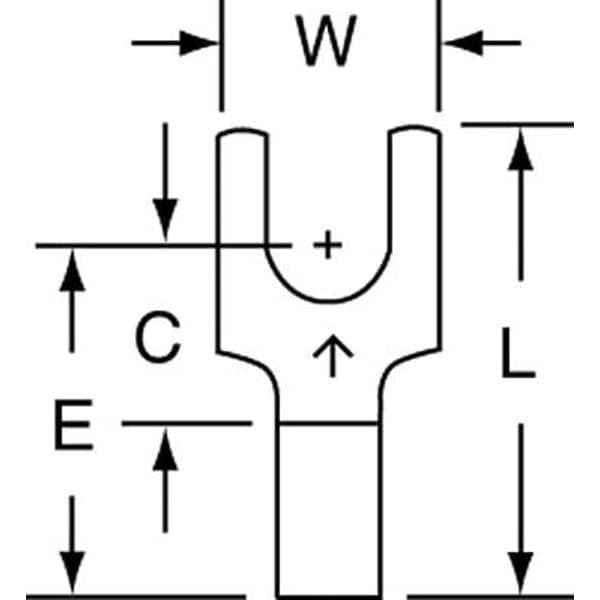

Dimensions
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Stud Size
#8
Tongue Width - Wire Connector
0.3 in
Overall Length
0.65 in
Barrel Inside Dia.
0.070 in
Barrel Length
0.25 in
Tongue Thickness
0.03 in
Tongue Width
0.3 in
Stud Diameter
0.164 in
Description
Fork Terminals, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Temperature 347 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 18 AWG, Stud Size #8, Termination Style Crimp, RoHS Compliant Yes, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.25 in, Connection Material Copper, Connection Type Crimp, Insulation Type Non-Insulated, Minimum Wire Size 22 AWG, Overall Length 0.65 in
