Male Disconnect, Blue, 16 to 14 AWG, PK1000
Mfr # MNG14-250DMK
Zoro # G5736211
product price: $590.99
/pk 1000, $0.59/ea
Free Shipping & Returns
Key Features
Insulation
Partial
Material
Plastic
Insulation Color
Blue
Insulation Type
Nylon
Connection Type
Crimp
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNG14-250DMK
Zoro #
G5736211
UPC #
00054007017882
Country of Origin
United States
Dimensions
Tab Size
0.032 in x 0.250 in
Overall Length
0.94 in
Barrel Inside Dia.
0.085 in
Barrel Inside Diameter
0.085 in
Barrel Outside Diameter
0.17 in
Maximum Wire Size
14 AWG
Barrel Size
Standard
Tab Thickness
0.032 in
Minimum Wire Size
16 AWG
Tab Width
0.25 in
Barrel Length
0.25 Inch
Pad Width
0.25 Inch
Maximum Insulation Outer Diameter
0.17 Inch

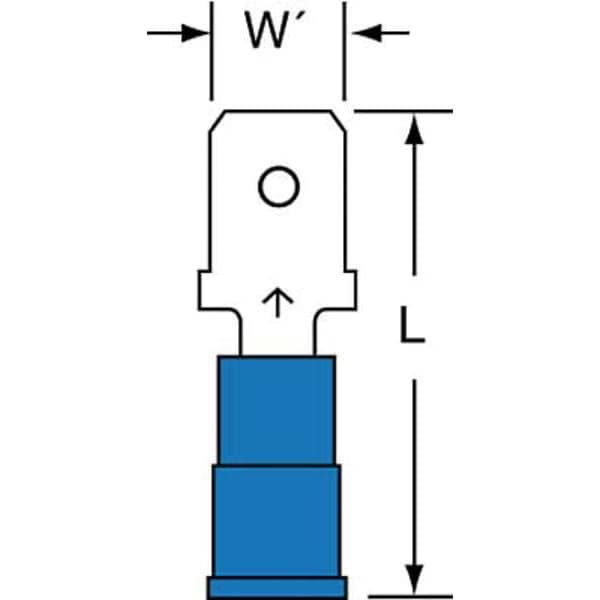

Male Tab Width (W')
0.25 Inch
Length
0.94 Inch
Conductor Sizes
16 - 14 AWG
Thickness
0.032 Inch
Bullet Diameter
0.156 in
Maximum Insulation Outside Diameter
0.145 in
Overall Diameter
0.23 in
Description
Male Disconnect, Contact Finish Tin, Contact Material Copper, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, RoHS Compliant Yes, Seam Style Butted, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.085 in, Barrel Outside Diameter 0.17 in
