Ring Terminal, #10 Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only, 1000 PK
Mfr # MV14-10RK
Zoro # G5504125
product price:Â $398.99
/pk 1000, $0.40/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Blue
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MV14-10RK
- Zoro #
- G5504125
- UPC #
- 00054007014218
- Country of Origin
- United States

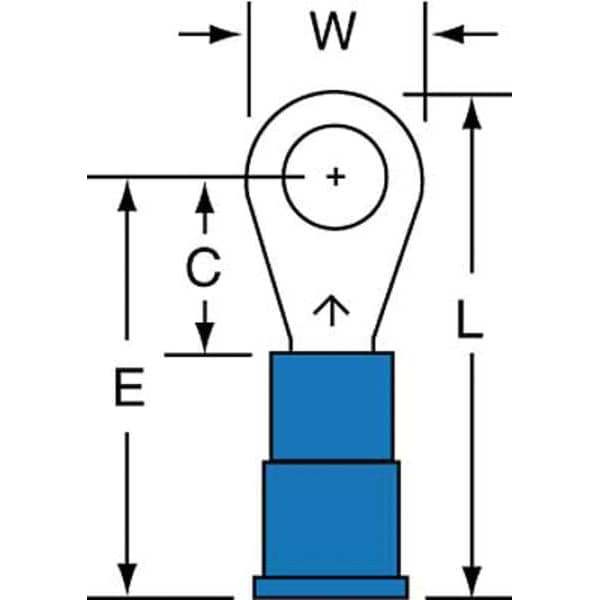

Dimensions
- Maximum Wire Size
- 14 AWG
- Minimum Wire Size
- 16 AWG
- Stud Size
- #10
- Overall Length
- 0.9 in
- Tongue Width - Wire Connector
- 0.31 in
- Tongue Width
- 0.31 in
Details
- Item
- Ring Terminal
- Terminal Shape
- Standard Ring Tongue
- Termination Style
- Crimp Termination Only
- Insulation Color
- Blue
- Insulation Type
- Vinyl
- Contact Material
- Copper
- Maximum Voltage
- 600 V
- Maximum Operating Temperature
- 221 Degrees F
- Standards
- CSA Certified, UL Listed
- Terminal Type
- Standard
- Connection Material
- Copper
- Connection Type
- Crimp
- Wire Range
- 16 to 14 AWG
- Max. Temp.
- 221 Degrees F
- Terminal Connection
- Crimp
- Max. Voltage
- 600 V
- Seam
- Brazed
- Insulation Coverage
- Partial Coverage
Description
Ring Terminal, Insulation Color Blue, Standards CSA Certified, UL Listed, Insulation Type Vinyl, Overall Length 0.9 in, Package Quantity 1000
