Ring Terminal, 3/8 in Stud Size, 18 AWG, 600 V, Vinyl Insulated, Red, Crimp Termination Only
Mfr # MVU18-38RK
Zoro # G5558612
product price:Â $492.99
/pk 1000, $0.49/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Red
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MVU18-38RK
Zoro #
G5558612
UPC #
00054007010920
Country of Origin
United States

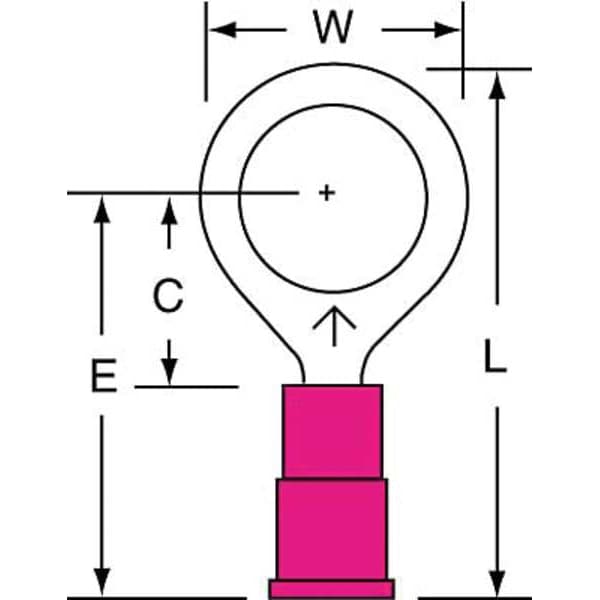

Dimensions
Maximum Wire Size
18 AWG
Minimum Wire Size
22 AWG
Stud Size
3/8 in
Tongue Width - Wire Connector
0.56 in
Overall Length
1.13 in
Connection Width
0.375 in
Tongue Width
0.56 in
Description
Ring Terminal, Insulation Color Red, Insulation Material Vinyl, Maximum Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Termination Style Crimp, Tongue Width 0.56 in, Contact Finish Tin, Contact Material Copper, Standards CSA, RoHS 2011/65/EU, UL, Barrel Inside Diameter 0.07 in, Barrel Length 0.25 in, Barrel Outside Diameter 0.15 in, Barrel Style Brazed, Hole Spacing 0.28 in, Minimum Operating Temperature -40 Degrees F, Overall Length 1.13 in
