Ring Terminal, 5/16 in Stud Size, 14 AWG, 1,000 V, Nylon Insulated, Blue, Crimp Termination Only
Mfr # MNG14-516R/SK
Zoro # G5766494
product price: $561.99
/pk 1000, $0.56/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Blue
Minimum Wire Size
16 AWG
Insulation Coverage
Partial Coverage
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNG14-516R/SK
Zoro #
G5766494
UPC #
00054007014409
Country of Origin
United States

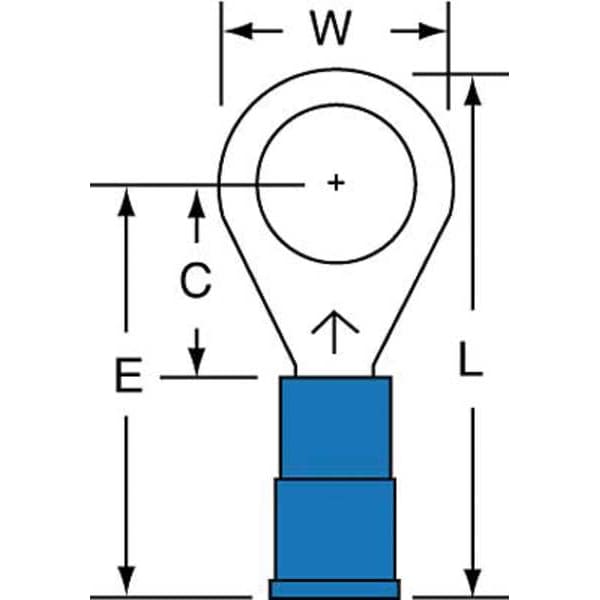

Dimensions
Maximum Wire Size
14 AWG
Minimum Wire Size
16 AWG
Stud Size
5/16 in
Overall Length
1.09 in
Tongue Width - Wire Connector
0.47 in
Barrel Inside Dia.
0.09 in
Tongue Width
0.47 in
Barrel Length
0.25 in
Tongue Length
0.84 in
Tongue Thickness
0.03 in
Description
Ring Terminal, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Termination Style Crimp, Tongue Width 0.47 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.09 in, Barrel Length 0.25 in, Barrel Style Butted, Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs
