Ring Terminal, 5/16 in Stud Size, 14 AWG, 600 V, Vinyl Insulated, Blue, Crimp Termination Only

  • Mfr # MV14-516R/SK

  • Zoro # G5812782

product price:  $464.99
/pk 1000, $0.46/ea
Free Shipping & Returns

Key Features

Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Blue
Maximum Wire Size
14 AWG
Minimum Wire Size
37 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MV14-516R/SK
Zoro #
G5812782
UPC #
00054007014249
Country of Origin
United States

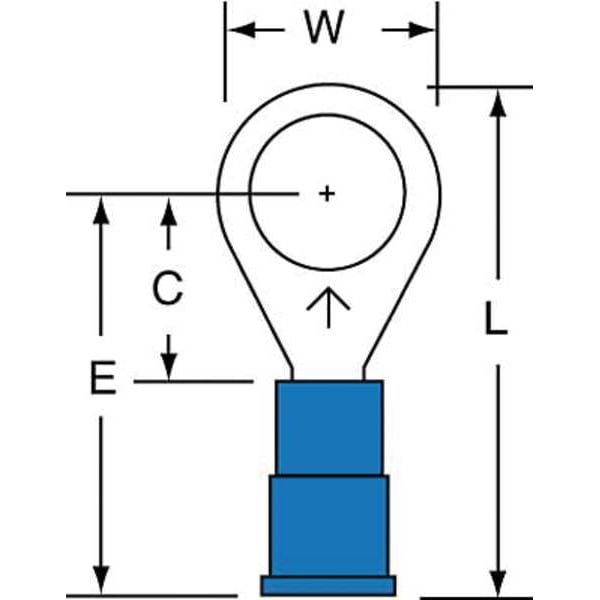

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
37 AWG
Stud Size
5/16 in
Overall Length
1.08 in
Tongue Width - Wire Connector
0.47 in
Connection Width
0.315 in
Tongue Width
0.47 in

Details

Item
Ring Terminal
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Blue
Insulation Type
Vinyl
Contact Material
Copper
Maximum Voltage
600 V
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed
Wire Range
16 to 14 AWG
Connection Material
Copper
Max. Temp.
221 Degrees F
Terminal Connection
Crimp
Connection Type
Crimp
Terminal Type
Standard
Seam
Brazed
Max. Voltage
600 V
Insulation Coverage
Partial Coverage

Description

Ring Terminal, Insulation Color Blue, Standards CSA Certified, UL Listed, Insulation Type Vinyl, Overall Length 1.08 in, Package Quantity 1000
