Ring Terminal, #6 Stud Size, 24 AWG, 1,000 V, Nylon Insulated, Yellow, Crimp Termination Only
Mfr # MN24-6RK
Zoro # G5796183
product price: $1,328.99
/pk 1000, $1.33/ea
Free Shipping & Returns
Key Features
Terminal Shape
Standard Ring Tongue
Termination Style
Crimp Termination Only
Insulation Color
Yellow
Minimum Wire Size
26 AWG
Insulation Coverage
Partial Coverage
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MN24-6RK
Zoro #
G5796183
UPC #
00054007951469
Country of Origin
Taiwan, Province of China

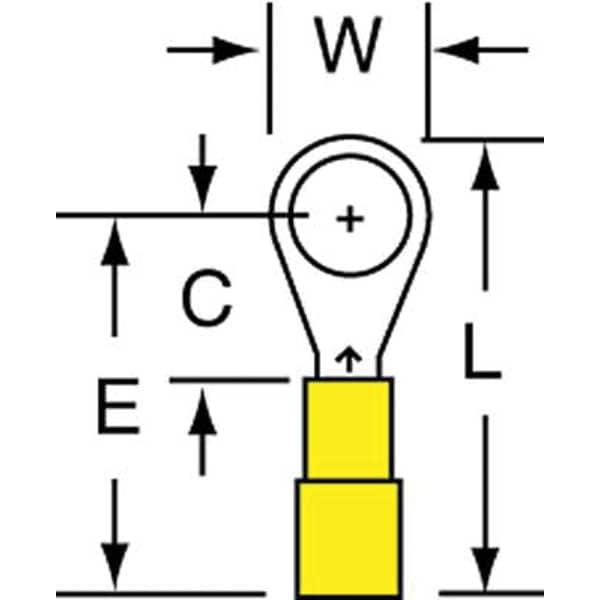

Dimensions
Maximum Wire Size
24 AWG
Minimum Wire Size
26 AWG
Stud Size
#6
Tongue Width - Wire Connector
0.2 in
Overall Length
0.6 in
Barrel Inside Dia.
0.03 in
Tongue Thickness
0.02 in
Tongue Width
0.2 in
Connection Width
0.138 in
Description
Ring Terminal, Insulation Color Yellow, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Temperature 221 Degrees F, Maximum Voltage 1,000 V, Minimum Wire Size 26 AWG, Maximum Wire Size 24 AWG, Termination Style Crimp, Tongue Width 0.2 in, Contact Finish Tin, Contact Material Copper, Standards CSA Certified, UL Listed, Barrel Inside Diameter 0.03 in, Barrel Style Brazed, Compatible with Product Type Building Wire, Fixtures or Luminaires, Signs, Hole Spacing 0.21 in
