Shop 3M

Splice Kit, 5 kV, 3/0 AWG Max

  • Mfr # 61343

  • Zoro # G222254073

product price:
$
218.99
/ea
Free Shipping & Returns

Key Features

Material
Epoxy
Standards
RoHS 2011/65/EU, UL
For Maximum Cable OD
1.56 in
Color
Black
Resistance Properties
Oil Resistant, Tough Resistant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
61343
Zoro #
G222254073
UPC #
00051128613436
Country of Origin
United States

Dimensions

Maximum Wire Size
3/0 AWG
Minimum Wire Size
3/0 AWG

Details

Material
Epoxy
Standards
RoHS 2011/65/EU, UL
For Maximum Cable OD
1.56 in
Color
Black
Resistance Properties
Oil Resistant, Tough Resistant
Item
Splice Kit
Resin Material
Epoxy
Maximum Voltage
5 kV
Insulation Material
Epoxy
Includes

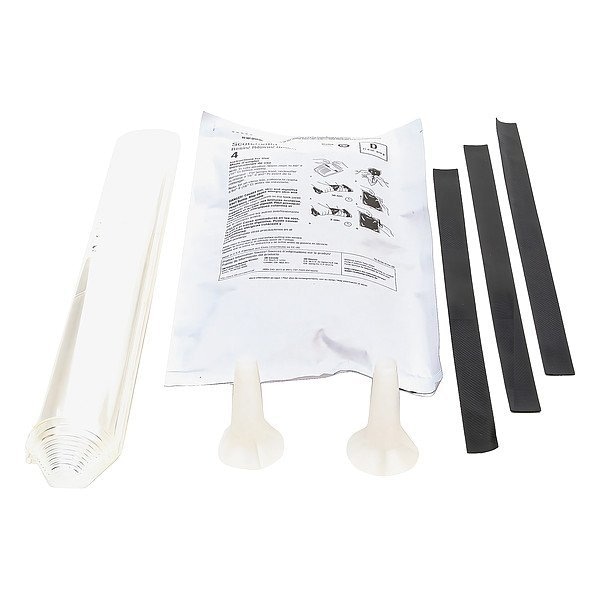

3M(TM) Scotchcast(TM) Electrical Insulating Resin 4N, Mold Body Pouring Spouts Scotch(R) Rubber Splicing Tape 23
For Conductor Type
Single Conductor Multiple Conductor
Special Features
Multi-Purpose Moisture Sealing Resin, Non-Shielded Submersible Cables Designed for Weather-Exposed or Direct Burial Locations Rated for 5 kV and 1 kV Cables Bonds to Itself and to Most Modern Cable Jackets, Tough and Oil Resistant Insulates and Seals Unshielded Single Conductor Cables and Multiple Conductor Cables Splices
Container Type
Box, Pallet

Description

Splice Kit, Color Black, Container Type Box, Pallet, For Maximum Cable OD 1.56 in, Includes 3M(TM) Scotchcast(TM) Electrical Insulating Resin 4N, Mold Body Pouring Spouts Scotch(R) Rubber Splicing Tape 23, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 5 kV, Minimum Wire Size 3/0 AWG, Maximum Wire Size 3/0 AWG, Resin Material Epoxy, Standards RoHS 2011/65/EU, UL, For Conductor Type Single Conductor Multiple Conductor, Insulation Material Epoxy

Restrictions

Hazardous material
This item has been restricted from sale in the following states: CA
