  11. Twist-On Wire Connector, 12 AWG Max, Yellow, Vinyl Insulation, 600 V, 1000 PK

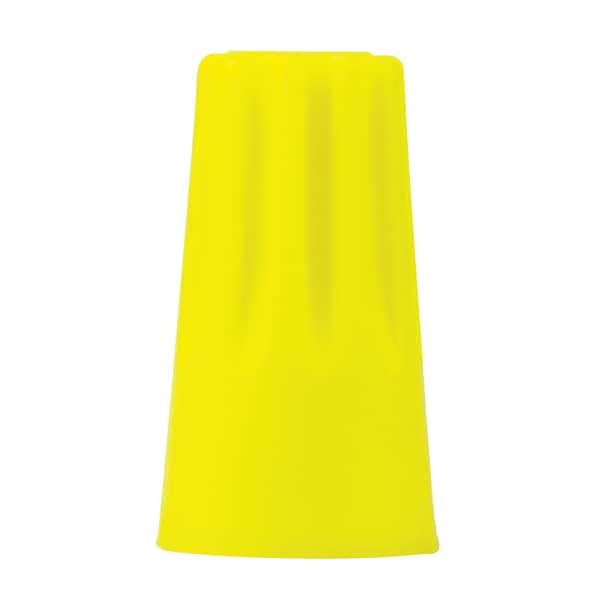

3M Twist-On Wire Connector, 12 AWG Max, Yellow, Vinyl Insulation, 600 V, 1000 PK H-33-BIN - main

Twist-On Wire Connector, 12 AWG Max, Yellow, Vinyl Insulation, 600 V, 1000 PK

  • Mfr # H-33-BIN

  • Zoro # G5520846

product price: $141.99
/pk 1000, $0.14/ea
Free Shipping & Returns

Key Features

Type
Twist-On
Color
Yellow
Minimum Wire Size
18 AWG
Insulation Material
Vinyl
Maximum Voltage
600 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
H-33-BIN
Zoro #
G5520846
UPC #
00054007431374
Country of Origin
China

Dimensions

Maximum Wire Size
12 AWG
Minimum Wire Size
18 AWG
Width
0.55 in
Height
0.95 in
Overall Width
0.55 in
For Minimum Wire Size - Solid
22 AWG

Details

Item
Twist-On Wire Connector
Type
Twist-On
Color
Yellow
Insulation Material
Vinyl
Maximum Voltage
600 V
Minimum Wire Combination
(4) 22 AWG
Maximum Wire Combination
(2) 14 AWG with (1) to (2) 18 AWG
Maximum Operating Temperature
221 Degrees F
RoHS Compliant
Yes
Series
H Series
Application
General Purpose
Standards
CSA Certified, UL Listed
Special Features
Wire Connectors Make it Quick and Easy to Match the Right Connector to the Size of the Wire, Work Equally Well With Either Solid or Stranded Copper Wire
Maximum Conductors
7
For Conductor Material
Copper
Material
Steel
Termination Style
Twist-On

Description

Twist-On Wire Connectors, Color Yellow, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (4) 22 AWG, Maximum Wire Combination (2) 14 AWG with (2) 18 AWG, Contact Material Steel, Maximum Conductors 6, Standards EU Compliant, Wire Connector Style Standard, Compatible with Product Type Insulating Wire, Insulation Material Vinyl, Maximum Single Wire Size 12 AWG, Minimum Single Wire Size 18 AWG, Overall Height 0.95 in
