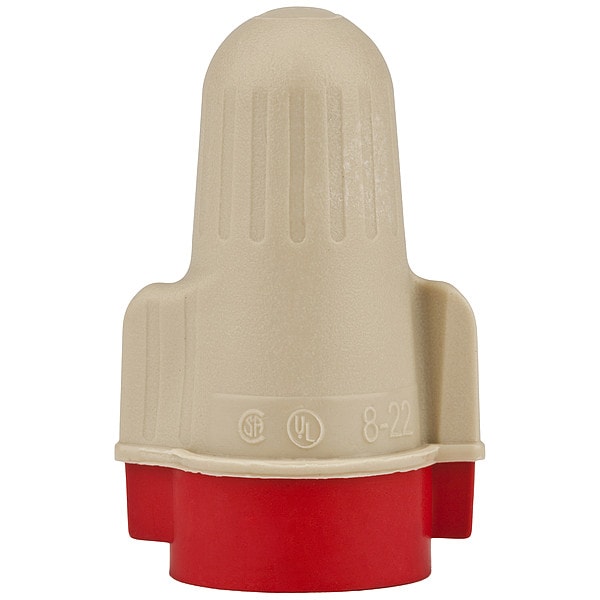

Twist-On Wire Connector, 8 AWG Max, Red, Tan, Polypropylene, Thermoplastic Elastomer Insulation
- Mfr # T/R+, Super Tan
- Zoro # G9906005
product price:Â
$
3,942.99
/pk of 25000, $0.16/ea
Key Features
Type
Twist-On
Color
Red, Tan
Minimum Wire Size
22 AWG
Insulation Material
Polypropylene, Thermoplastic Elastomer
Maximum Voltage
600 V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- T/R+, Super Tan
- Zoro #
- G9906005
- UPC #
- 00051128544563
- Country of Origin
- United States
- Item
- Twist-On Wire Connector
- Type
- Twist-On
- Color
- Red, Tan
- Insulation Material
- Polypropylene, Thermoplastic Elastomer
- Maximum Voltage
- 600 V
- Minimum Wire Combination
- (2) 18 AWG
- Maximum Wire Combination
- (5) 12 AWG
- Maximum Operating Temperature
- 221 Degrees F
- UL 94 Flammability Rating
- V-2
- RoHS Compliant
- Yes
- Standards
- CSA Certified, EU, UL Listed
- Wire Connector Style
- Standard
- Application
- Wide Range
- Series
- Performance Plus
- For Conductor Material
- Copper
- Maximum Conductors
- 5
- Material
- Steel
- Termination Style
- Twist-On
- Connector Type
- T/R+
- Compatible with Product Type
- Copper Wire
- Contact Material
- Steel
- Special Features
- Strong Bite for a Secure, Reliable Connection Flexible Spring Expands for Greater Wire Range and Reuse
- Wire Color
- Red/Tan
Dimensions
- Maximum Wire Size
- 18 AWG
- Minimum Wire Size
- 22 AWG
- Height
- 1.17 in
- Width
- 0.76 in
- Overall Width
- 0.76 in
- Strip Length
- 1/2 in
- For Minimum Wire Size - Solid
- 22 AWG
- Maximum Single Wire Size
- 8 AWG
- Overall Height
- 1.17 in
- Minimum Single Wire Size
- 22 AWG
Description
Twist-On Wire Connectors, Color Red/Tan, For Conductor Material Copper, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Combination (2) 18 AWG, Maximum Wire Combination (5) 12 AWG, Contact Material Steel, UL 94 Flammability Rating V-2, Maximum Conductors 5, Standards EU Compliant, Wire Connector Style Standard, Compatible with Product Type Copper Wire, Insulation Material Polypropylene/Thermoplastic Elastomer, Maximum Single Wire Size 8 AWG
