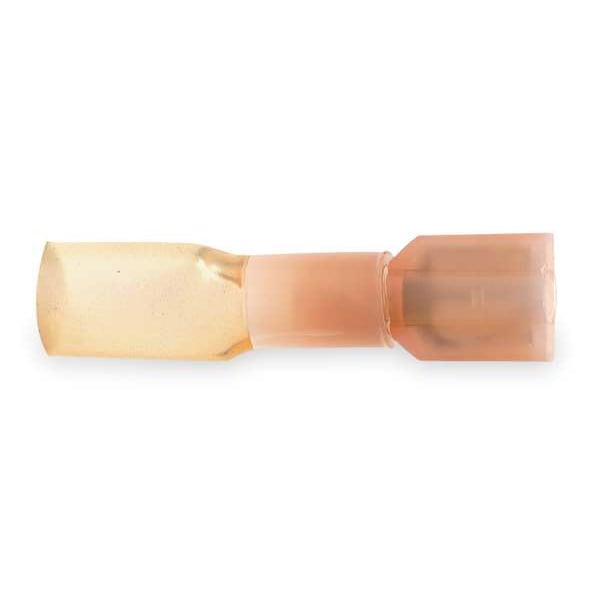

Wire Disconnect, Round, Nylon w/Heat Shrink, PK25
Mfr # MNHU18-250DFIX
Zoro # G3259751
product price:Â
$
54.29
/pk 25, $2.17/ea
Key Features
Insulation
Full
Insulation Color
Red
Connection Type
Crimp
Insulation Type
Heat Shrink
Wire Range
22 to 18 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MNHU18-250DFIX
- Zoro #
- G3259751
- UPC #
- 10051128589165
- Country of Origin
- United States
Dimensions
- Tab Size
- 0.032 in x 0.250 in
- Overall Length
- 1.2 in
- Barrel Inside Dia.
- 0.08 in
- Overall Width
- 0.37 in
- Male Tab Width (W')
- 0.250 in
- Barrel Inside Diameter
- 0.08 in
- Tab Width
- 0.187 in
- Minimum Conductor Size
- 22 AWG
- Pad Width
- 0.25 in
- Diameter (D)
- 0.23 in
- Connection Width
- 0.25 in
- Overall Diameter
- 0.23 in
- Maximum Conductor Size
- 18 AWG
- Tab Thickness
- 0.032 in
- Maximum Wire Size
- 18 AWG
- Minimum Wire Size
- 22 AWG
- Wire Rope Length
- 1.2 in
- Length
- 1.2 in
Description
Female Disconnect, Contact Material Brass, Insulation Color Red, Insulation Coverage Full Coverage, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Female Disconnect, Termination Style Crimp, Seam Style Butted, Standards CSA Certified, RoHS Compliant, UL Listed, Barrel Inside Diameter 0.08 in, Insulation Type Heat Shrink, Overall Length 1.2 in, Package Quantity 25
