Shop STA-KON

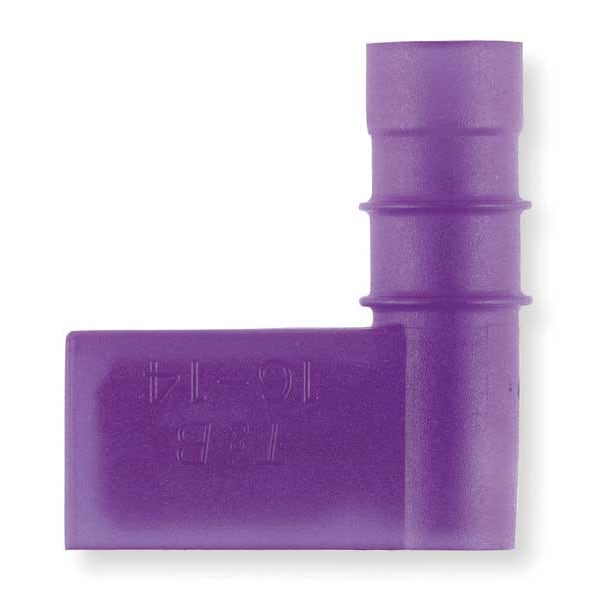

Female Flag Disconnect, 16 to 14 AWG, PK50

  • Mfr # RB14-250A

  • Zoro # G2752215

product price:  $57.39
/pk 50, $1.15/ea

Key Features

Insulation
Full
Material
Brass
Insulation Color
Blue
Color
Blue
Connection Type
Crimp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RB14-250A
Zoro #
G2752215
UPC #
-
Country of Origin
United States

Dimensions

Tab Size
0.032 in x 0.250 in
Overall Length
0.8 in
Barrel Inside Dia.
0.086 in
Barrel Size
Long
Tab Width
0.25 in
Tab Thickness
0.032 in
Maximum Wire Size
14 AWG
Barrel Inside Diameter
0.086 in
Minimum Wire Size
16 AWG
Wire Rope Length
0.8 in

Details

Item
Wire Disconnect
Insulation
Full
Material
Brass
Insulation Color
Blue
Color
Blue
Connection Type
Crimp
Insulation Type
Nylon
Wire Range
16 to 14 AWG
Seam
Brazed
Max. Voltage
600 V
Max. Temp.
221 Degrees F
Connection Material
Tin-Plated Copper
Standards
UL E66716
Features
Unique construction of the female disconnect offers long-term dependability.; Brazed seam serrated barrel provides maximum tensile strength.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RB2577F
Contact Finish
Tin
Termination Style
Crimp
Maximum Voltage
600 V
Disconnect Style
Flag Quick Disconnect
RoHS Compliant
No
Barrel Style
Funnel Entry
Connection Orientation
90 Degrees Angled
Insulation Coverage
Full Coverage
Insulation Material
Nylon
UL 94 Flammability Rating
Not Rated
Contact Material
Brass
Special Features
Brazed Seam Serrated Barrel
Maximum Operating Temperature
221 Degrees F
Seam Style
Brazed
Terminal Type
Socket
Flammability Rating
UL 94 V-2
Finish
Electro Tin-Plated
Maximum Insulation (inches)
0.2
Recommended Tool
ERG4001
Voltage Rating
600V
Terminal Series
RB
Application Tools
WT145C, WT2000, WT112M, ERG4001, ERG4003
B (inches)
0.72
A (inches)
0.8
Temperature Rating
105°C
Disconnect Type
Female - 250 Series
AWG-range
16-14
Type
Nylon Insulated Open Top 90 Degree Flag Female Disconnect
Material insulation
PA

Description

Female Flag Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style 90 Degree, Insulation Color Blue, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716
