Shop All Mounted Linear Bearings
80/20

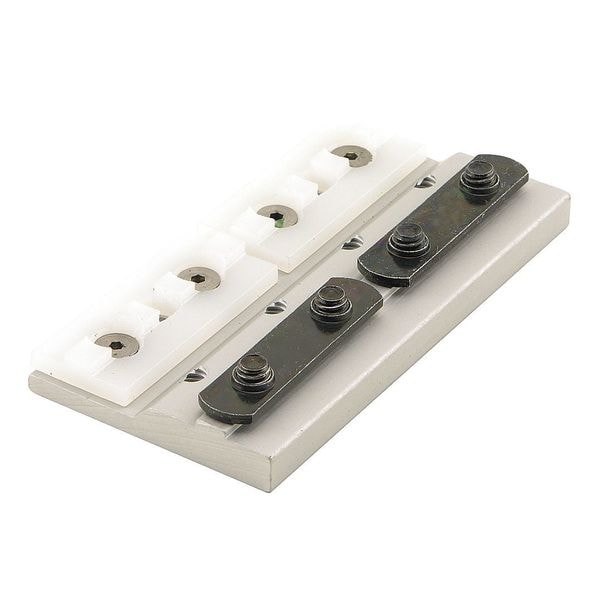

Linear Bearing, 2.062 In W, 4.000 In L

product price: $26.49
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material UHMWPE
  • Bolt Size 1/4-20
  • Body Width (In.) 2.062 in
  • Lubrication Dry
  • Locking Type Optional
See all product information

Product Information

Dimensions

Bolt Size 1/4-20
Body Width (In.) 2.062 in
Mounting Hole Dia. (In.) 0.265 in
Dimension C (In.) 0.302 in
Height 0.312
Dimension M (In.) 1 in
Dimension E (In.) 0.25 in
Dimension K 0.5 in
Overall Length (In.) 4 in
Dimension B (In.) 0.152 in
Dimension D (In.) 1.165 in
Slot Width (In.) 0.255 in
Dimension L (In.) 1 in
Dimension H (In.) 0.5 in
Dimension A (In.) 0.312 in
Dimension F (In.) 1.062 in
Dimension G (In.) 2.062 in
Width 2.062
Overall Height (In.) 0.312 in
Overall Width (In.) 2.062 in
Overall Length 4 in
Mounting Hole Diameter 17/64 in
Overall Height 5/16 in
Overall Width 2 1/16 in

Details

Item Linear Bearing
Material UHMWPE
Lubrication Dry
Locking Type Optional
Mounting Bolt (In.) 1/4-20
For Use With 10 Series
Mounting Hole Center (In.) 1 in
Finish Anodized
Color Silver
Bearing Type Standard Linear
Type Single Long
Mounting Hole (In.) 0.265 in
For Number of Slots 2
System of Measurement Inch
Series 10 Series
Pad Type Standard
Compatible Brand and Series 10 Series
Pad Material UHMW Plastic
Product Type Linear Bearing
Bearing Profile Single Mount
Housing Material Aluminum

Description

Linear Bearing, Standard Linear, Overall Height 5/16 in, Overall Length 4 in, Overall Width 2 1/16 in, Housing Material Aluminum, Mounting Hole Diameter 17/64 in, Anodized, Silver, System of Measurement Inch, 10 Series, Single Mount, For Number of Slots 2, Standard, Pad Material UHMW Plastic, Compatible Brand and Series 10 Series
