Shop All Mounted Linear Bearings
80/20

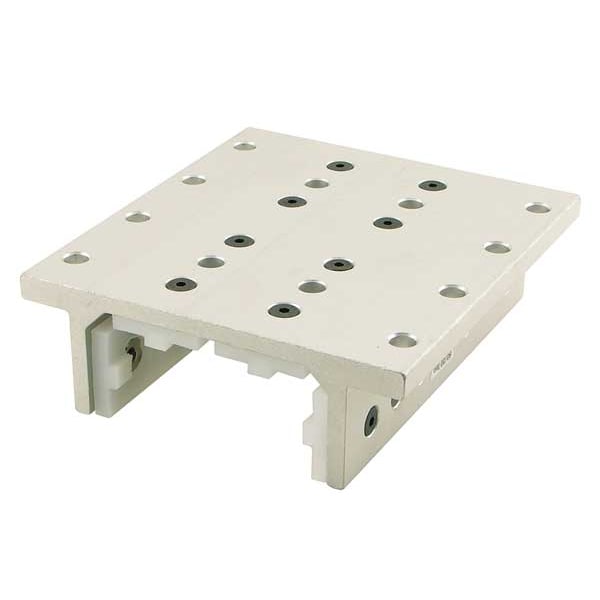

Linear Bearing, 5.500 In W, 6.000 In L

original price: $145.99
4% off
new price: $138.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Material UHMWPE
  • Width 5.5
  • Dimension C (In.) 4 in
  • Slot Width (In.) 0.32 in
  • Mounting Bolt (In.) 5/16-18
See all product information

Product Information

Dimensions

Width 5.5
Dimension C (In.) 4 in
Slot Width (In.) 0.32 in
Bolt Size 5/16-18
Body Width (In.) 5.5 in
Overall Height (In.) 1.875 in
Overall Length (In.) 6 in
Mounting Hole Dia. (In.) 0.328 in
Dimension L (In.) 1.875 in
Dimension H (In.) 0.75 in
Dimension E (In.) 1.235 in
Dimension M (In.) 1.5 in
Dimension K 1.25 in
Height 1.875
Dimension D (In.) 0.64 in
Dimension G (In.) 5.5 in
Dimension F (In.) 0.375 in
Dimension P 0.75 in
Overall Width (In.) 5.5 in
Dimension A (In.) 3 in
Dimension B (In.) 0.5 in
Overall Length 6 in
Overall Height 1 7/8 in
Mounting Hole Diameter 21/64 in
Overall Width 5 1/2 in

Details

Item Linear Bearing
Material UHMWPE
Mounting Bolt (In.) 5/16-18
Locking Type Optional
Type High Cycle Single Flange
Color Silver
Lubrication Dry
Flange Thickness (In.) 0.375 in
For Use With 15 Series
Finish Anodized
Mounting Hole Center (In.) 1.5 in
Bearing Type Standard Linear
Mounting Hole (In.) 0.328 in
For Number of Slots 4
Housing Material Aluminum
Pad Material UHMW Plastic
Pad Type High-Cycle
Series 15 Series
System of Measurement Inch
Bearing Profile Double Flanged
Product Type Linear Bearing
Flange Thickness 3/8 in
Compatible Brand and Series 15 Series

Description

Linear Bearing, Standard Linear, Overall Height 1 7/8 in, Overall Length 6 in, Overall Width 5 1/2 in, Housing Material Aluminum, Mounting Hole Diameter 21/64 in, Anodized, Silver, System of Measurement Inch, 15 Series, Double Flanged, For Number of Slots 4, High-Cycle, Flange Thickness 3/8 in, Pad Material UHMW Plastic, Compatible Brand and Series 15 Series
