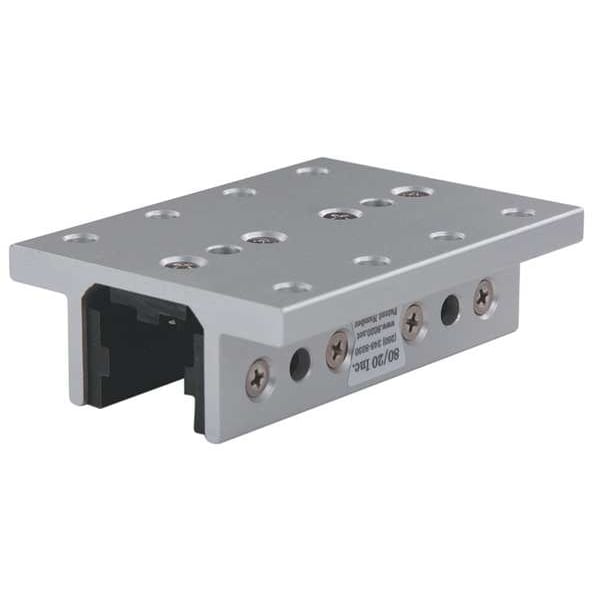

Linear Bearing, 74.15 mm W, 100 mm L

80/20 |Zoro #: G2049652|Mfr #: 25-6426

$73.94 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2049652 Mfr #: 25-6426
Steady State Speed: -Steady State Speed - Intermittent Dry: -
Steady State Speed - Continuous Dry: -Lubrication: Dry
Liner: -Color: Silver
Accelerated Speed: -Finish: Clear Anodize
Bearing Type: UHMW PADRetaining Ring: -
Seal: -Locking Type: Optional
Item: Linear BearingIncludes: -
Material: UHMWPESelf-Alignment: -
Agency Compliance: -Dimension G1: 0
Dimension V: 0Dimension G (In.): -
Flange Thickness (mm): 8Dimension G1 (In.): 0
Overall Height (mm): 31.25Slot Width (mm): 6.50
Overall Length (In.): -Dimension G: 74.15
Dimension S (In.): 0Dimension F (In.): -
Flange Thickness (In.): -Dimension F1 (In.): 0
Mounting Surface to Shaft Center (mm): 0Max. Pv: 0
Overall Height (In.): -Dimension E (In.): -
Dimension F1: 0Dimension S: 1.8
Flange Dia. (mm): 0Dimension E1 (In.): 0
Mounting Hole Dia. (mm): 6.3Mounting Hole Dia. (In.): 0
Mounting Hole (In.): -Dimension D (In.): -
Dimension E1: 0Dimension P: 12.5
Bore Dia. (mm): 6.3Dimension A2 (In.): 0
Dimension N3: 0Mounting Hole Center (mm): 25
Slot Width (In.): 0Mounting Bolt (In.): -
Dimension C (In.): -Dimension A2: 0
Dimension O: 0Dimension E2: 0
Mounting Surface to Shaft Center (In.): 0Width: 74.15
Mounting Hole Center (In.): 0Dimension B: 8.1
Height: 31.25Dimension B (In.): -
Dimension A1: 0Dimension N2 (In.): 0
Dimension d: -Dimension F: 8
Type: Double FlangeDimension N2: 0
Dimension A1 (In.): 0Flange Dia. (In.): -
Dimension A (In.): -Body Width (mm): 0
Dimension N Dia. (In.): 0Static Load Capacity (N): 0
Bolt Size: -Temp. Range (F): -
Dimension N: 100Dimension Z: 0
Dynamic Load Capacity (Lb.): -Bore Dia. (In.): -
Body Width (In.): -Dimension K: 22.55
Dynamic Load Capacity (N): 0Dimension E: 20.3
Static Load Capacity (Lb.): 0Dimension J: 57.12
Dimension Y: 0Dimension M (In.): 23.25
Barrel Dia. (mm): 0Dimension H2: 0
Dimension Dp: 0Dimension D: 10.9
Shaft Dia. (In.): -Dimension I: 0
Dimension X: 0Dimension L (In.): 31.25
Barrel Dia. (In.): 0Dimension H1 (In.): 0
Slot Angle (Degrees): 0Dimension C: 41.2
Overall Width (In.): -Dimension H: 16.5
Dimension V (In.): 0Dimension H (In.): -
Dimension R: 8.45Dimension H1: 0
Overall Width (mm): 74.15Dimension A: 25
Overall Length (mm): 100Country of Origin (subject to change): United States

Product Description

Linear Bearing, Double Flange, Bore Dia 6.3 mm, Overall Width 74.15 mm, Overall Length 100 mm, Overall Height 31.25 mm, Flange Thickness 8 mm, Mounting Hole Center 25 mm, Mounting Hole Dia 6.3 mm, Slot Width 6.5 mm, Height 31.25, Width 74.15, For Use With 25 Series
