Shop 80/20

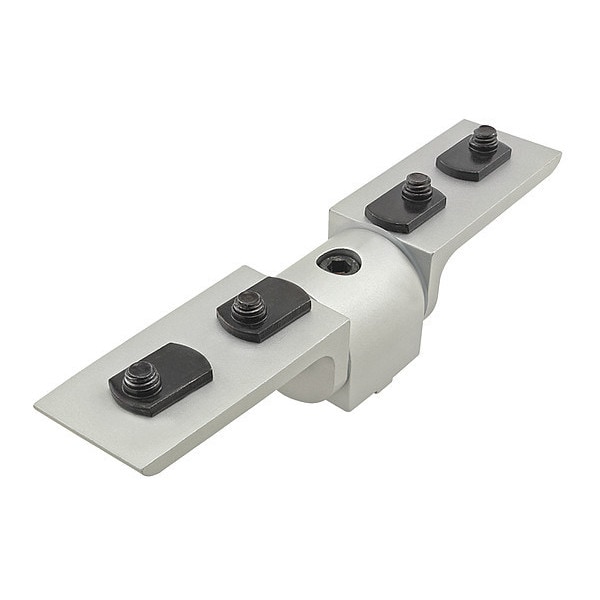

LivingHinge, Alum, Silver, 161/64in, 11/2in

  • Mfr # 4321

  • Zoro # G0808171

product price:  $42.19
/ea

Key Features

Connector Type
Dynamic Pivot Assembly
Fastener Thread Length
5/8 in, 1 1/2 in
Fastener Type
Black (FHSCS) with Slide-In Economy T-Nut Offset Thread (Arm to Profile Bolt Assembly); Black (SHCS) and Slide-In Economy T-Nut Offset Thread (Nub to Profile Bolt Assembly)
Product Type
Dynamic Pivot Assembly
Includes Fasteners
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4321
Zoro #
G0808171
UPC #
-
Country of Origin
United States

Dimensions

Fastener Thread Length
5/8 in, 1 1/2 in
Fastener Thread Size
5/16"-18
Overall Height
1 61/64 in
Overall Width
1 1/2 in
Wire Rope Length
7 33/64 in
Overall Length
7 33/64 in

Details

Item
Living Hinge
Connector Type
Dynamic Pivot Assembly
Fastener Type
Black (FHSCS) with Slide-In Economy T-Nut Offset Thread (Arm to Profile Bolt Assembly); Black (SHCS) and Slide-In Economy T-Nut Offset Thread (Nub to Profile Bolt Assembly)
Product Type
Dynamic Pivot Assembly
Includes Fasteners
Yes
Finish
Anodized
Fastener Mounting Type
Slide-In
System of Measurement
Inch
Material
Aluminum
Includes
(4) 3500 Arm to Profile Bolt Assembly: 5/16-18 x 0.625 in Black FHSCS with Slide-In Economy T-Nut, 3412 Nub to Profile Bolt Assembly: 5/16-18 x 1.5 in Black SHCS and Slide-In Economy T-Nut, 3613 Arm to Nub Bolt Assembly: (2) 3/8 x 3/8 in Shoulder Bolt with (2) Small Thrust Washer and (2) Large Thrust Washer
Color
Silver

Description

Dynamic Pivot Assembly, Silver, Anodized, Overall Height 1 61/64 in, Slide-In, Black (FHSCS) with Slide-In Economy T-Nut Offset Thread (Arm to Profile Bolt Assembly); Black (SHCS) and Slide-In Economy T-Nut Offset Thread (Nub to Profile Bolt Assembly), Overall Length 7 33/64 in, Overall Width 1 1/2 in, Fastener Thread Length 5/8 in, 1 1/2 in, Aluminum, Fastener Thread Size 5/16 In.-18, Includes Fasteners Yes, System of Measurement Inch, Dynamic Pivot Assembly
