Shop 80/20

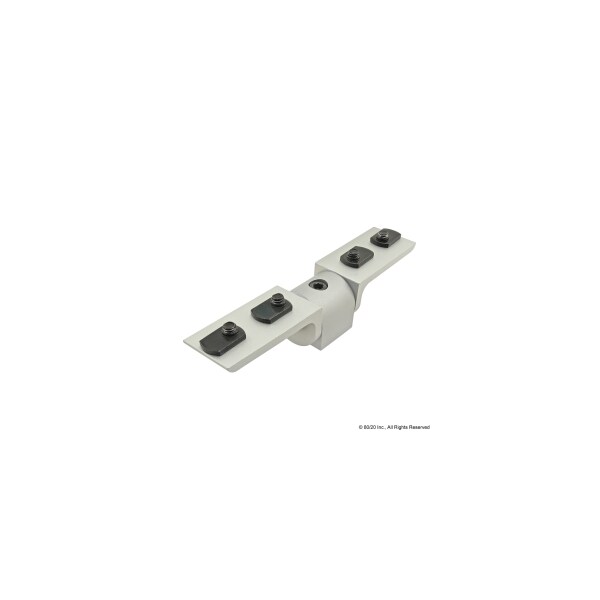

LivingHinge, Alum, Silver, 161/64in, 11/2in

  • Mfr # 4322

  • Zoro # G0808241

product price:  $44.79
/ea

Key Features

Includes Fasteners
Yes
Connector Type
Dynamic Pivot Assembly
Fastener Type
Black (FHSCS) with Slide-In Economy T-Nut Offset Thread (Arm to Profile Bolt Assembly); Black (SHCS) and Slide-In Economy T-Nut Offset Thread (Nub to Profile Bolt Assembly)
Fastener Mounting Type
Slide-In
Fastener Thread Length
5/8 in, 1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4322
Zoro #
G0808241
UPC #
-
Country of Origin
United States

Dimensions

Fastener Thread Length
5/8 in, 1 1/2 in
Fastener Thread Size
5/16"-18
Overall Height
1 61/64 in
Overall Width
1 1/2 in
Wire Rope Length
7 33/64 in
Overall Length
7 33/64 in

Details

Item
Living Hinge
Includes Fasteners
Yes
Connector Type
Dynamic Pivot Assembly
Fastener Type
Black (FHSCS) with Slide-In Economy T-Nut Offset Thread (Arm to Profile Bolt Assembly); Black (SHCS) and Slide-In Economy T-Nut Offset Thread (Nub to Profile Bolt Assembly)
Fastener Mounting Type
Slide-In
System of Measurement
Inch
Includes
(4) 3500 Arm to Profile Bolt Assembly: 5/16-18 x 0.625 in Black FHSCS with Slide-In Economy T-Nut, 3412 Nub to Profile Bolt Assembly: 5/16-18 x 1.5 in Black SHCS and Slide-In Economy T-Nut, 3613 Arm to Nub Bolt Assembly: (2) 3/8 x 3/8 in Shoulder Bolt with (2) Small Thrust Washer and (2) Large Thrust Washer
Material
Aluminum
Color
Silver
Finish
Anodized
Product Type
Dynamic Pivot Assembly

Description

Dynamic Pivot Assembly, Silver, Anodized, Overall Height 1 61/64 in, Slide-In, Black (FHSCS) with Slide-In Economy T-Nut Offset Thread (Arm to Profile Bolt Assembly); Black (SHCS) and Slide-In Economy T-Nut Offset Thread (Nub to Profile Bolt Assembly), Overall Length 7 33/64 in, Overall Width 1 1/2 in, Fastener Thread Length 5/8 in, 1 1/2 in, Aluminum, Fastener Thread Size 5/16 In.-18, Includes Fasteners Yes, System of Measurement Inch, Dynamic Pivot Assembly
