  13. A145-30-11-84, A145 3PCONTR 110/50 110-120/60
Shop All IEC Magnetic Contactors
Abb

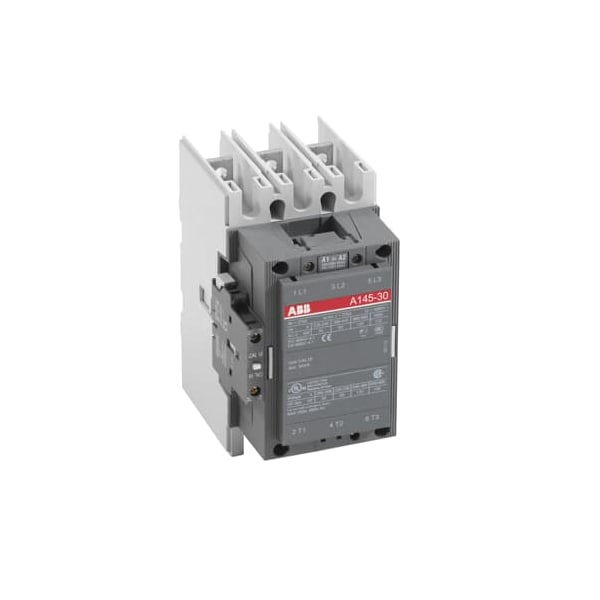

A145-30-11-84, A145 3PCONTR 110/50 110-120/60

product price: $1,296.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Coil Volts 110 to 120V
  • HP @ 3 Phase - 208V 40 hp
  • HP @ 3 Phase - 240V 50 hp
  • HP @ 3 Phase - 480V 100 hp
  • Aux. Contact Configuration 1NO/1NC
See all product information

Product Information

Dimensions

Height 196 mm
Depth 160 mm
Width 111.5 mm
Working Height 3000 m

Details

Coil Volts 110 to 120V
HP @ 3 Phase - 208V 40 hp
HP @ 3 Phase - 240V 50 hp
HP @ 3 Phase - 480V 100 hp
Aux. Contact Configuration 1NO/1NC
Hz 50/60 Hz
Rated Voltage 690V
Control Circuit Voltage Limits 0.85 to 1.1 Uc
Net Weight 2.9 kg
Thermal Amperage 250 A (at 40°C)
Max. Operating Watts 75 kW (at 380/400V, 415V, 440V), 90 kW (at 500V), 110 kW (at 690V), 45 kW (at 220/230/240V)
Hold VA 35 VA (at 50 Hz), 40 VA (at 60 Hz)
Operating Time 5 to 10 ms (Coil De-energization and NC Contact Closing), 9 to 13 ms (Coil De-energization and NO Contact Opening), 8 to 22 ms (Coil Energization and NC Contact Opening), 13 to 27 ms (Coil Energization and NO Contact Closing)
Electrical Connection Bars
Mechanical Durability 5 Mcycles
Rated Short-Time Withstand Current 1200 A (at 40°C for 10 s), 280 A (at 40°C for 15 min), 600 A (at 40°C for 1 min), 1800 A (at 40°C for 1 s), 800 A (at 40°C for 30 s)
IP Rating IP00, IP20
Rated Insulation Volts 600/1000V
Impulse Withstand Voltage 8 kV

Description

A145 3PCONTR 110/50 110-120/60

Restrictions

  • This item has been restricted from sale in the following states: CA
