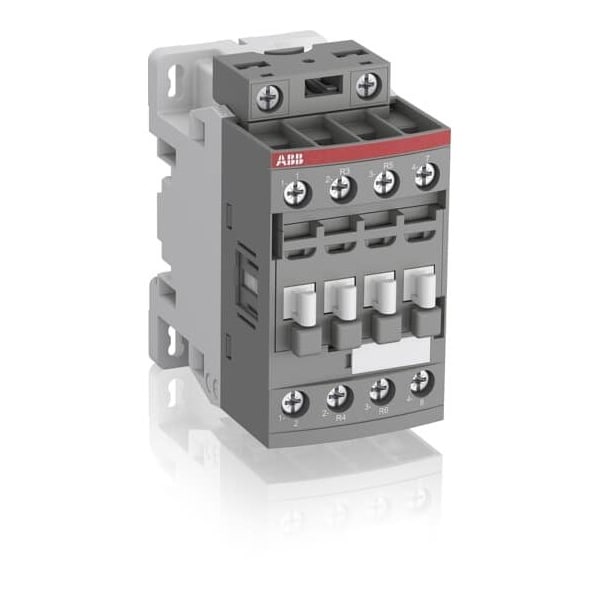

Abb AF09Z-22-00-21, AF09Z 4P CONTR, 24-60VAC, 20-60V AF09Z-22-00-21 - main

AF09Z-22-00-21, AF09Z 4P CONTR, 24-60VAC, 20-60V

  • Mfr # AF09Z-22-00-21

  • Zoro # G9281619

product price:  $144.99
/ea
Free Shipping & Returns

Key Features

Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Application
For Controlling Single and Three Phase Motors and Switching Power Circuits
Overall Depth
45 mm
Overall Width
86 mm
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
AF09Z-22-00-21
Zoro #
G9281619
UPC #
80432553914
Country of Origin
France

Dimensions

Overall Depth
45 mm
Overall Width
86 mm
Overall Height
77 mm

Details

Item
IEC Magnetic Contactor
Terminal Connection Type
Screw
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1, ABS, BV, CB, CCC, CQC, CE, UKCA, DNV, KC, LR, RINA, RMRS
Application
For Controlling Single and Three Phase Motors and Switching Power Circuits
Number of Poles
4
Coil Voltage
24V-60V AC, 20V-60V DC
Number of Auxillary Contacts
0
Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
25 A
Auxiliary Contact Form
No Auxiliary Contacts

Description

The ABB - AF09Z-22-00-21, AF09Z 4P CONTR, 24-60VAC, 20-60V is an IEC Magnetic Contactor. This device falls under the category of "IEC Magnetic Contactors" and is primarily used for controlling single and three-phase motors as well as switching power circuits. It features a compact design with dimensions of 45mm in depth, 77mm in height, and a width of 86mm.

Key Features:

  • • Application: The contactor's main function is to control both single and three-phase motors along with the ability to switch power circuits. • Electrical Connection: Comes with screw terminals designed for making electrical connections. • Dimensions: Compact size measuring at a depth of 45 mm, height of 77 mm, and width of 86 mm making it suitable for installations where space may be limited. • Standards: Meets multiple international standards including CB, CCC, cULus (Underwriters Laboratories), CE (European Conformity), DNV (Det Norske Veritas), EAC (Eurasian Conformity), RINA (Registro Italiano Navale). • Terminal Connection Type: Features a screw type terminal connection intended for use in establishing connectivity.
